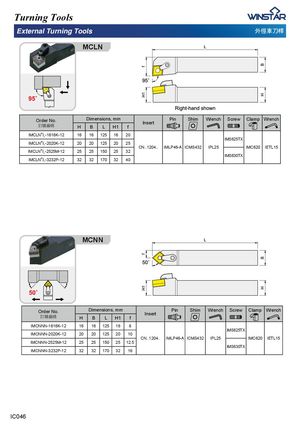

Turning Tools External Turning Tools ⪥ㄠ恙⎏㨎 MCLN Order No.宑庋佷䩋 Dimensions, mm Insert Pin Shim Wrench Screw Clamp WrenchHBLH1f IMCLNR/L-1616K-12 16 16 125 16 20 IMS625TX IMCLNR/L-2020K-12 20 20 125 20 25 CN..1204.. IMLP46-A ICMS432 IPL25 IMC620 IETL15 IMCLNR/L-2525M-12 25 25 150 25 32 IMS630TX IMCLNR/L-3232P-12 32 32 170 32 40 MCNN Order No.宑庋佷䩋 Dimensions, mm Pin Shim Wrench Screw Clamp WrenchInsertHBLH1f IMCNNN-1616K-12 16 16 125 16 8 IMS625TX IMCNNN-2020K-12 20 20 125 20 10 CN..1204.. IMLP46-A ICMS432 IPL25 IMC620 IETL15 IMCNNN-2525M-12 25 25 150 25 12.5 IMS630TX IMCNNN-3232P-12 32 32 170 32 16 IC046
