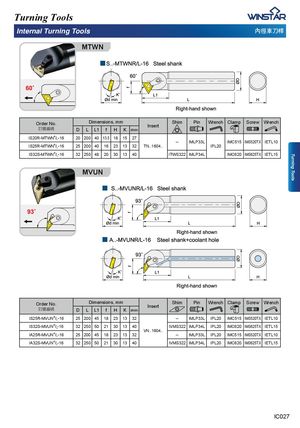

Turning Tools Turning Tools Internal Turning Tools ⋶ㄠ恙⎏㨎 MTWN Order No.宑庋佷䩋 Dimensions, mm Insert Shim Pin Wrench Clamp Screw WrenchDLL1fHKdmin IS20R-MTWNR/L-16 20 200 40 13.5 18 15 27 -- IMLP33L IMC515 IMS520TX IETL10 IS25R-MTWNR/L-16 25 200 40 16 23 13 32 TN..1604.. IPL20 IS32S-MTWNR/L-16 32 250 48 20 30 13 40 ITWS322 IMLP34L IMC620 IMS625TX IETL15 MVUN Order No.宑庋佷䩋 Dimensions, mm Insert Shim Pin Wrench Clamp Screw WrenchDLL1fHKdmin IS25R-MVUNR/L-16 25 200 45 18 23 13 32 -- IMLP33L IPL20 IMC515 IMS520TX IETL10 IS32S-MVUNR/L-16 32 250 50 21 30 13 40 IVMS322 IMLP34L IPL20 IMC620 IMS625TX IETL15VN..1604.. IA25R-MVUNR/L-16 25 200 45 18 23 13 32 -- IMLP33L IPL20 IMC515 IMS520TX IETL10 IA32S-MVUNR/L-16 32 250 50 21 30 13 40 IVMS322 IMLP34L IPL20 IMC620 IMS625TX IETL15 IC027
