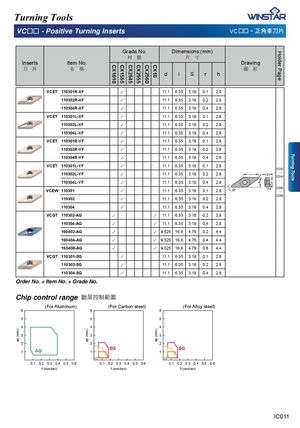

Каталог Winstar инструмент со сменными пластинами 2020 - страница 179

CX1010 CX1555 CX2545 CX2555 CX2560 CX10 Holder Page Turning Tools Turning Tools VCΩΩ - Positive Turning Inserts VCΩΩ . 㳲孡恙⎏䏖 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ d l S r h VCET 110301R-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304R-XF ✓ 11.1 6.35 3.18 0.4 2.8 VCET 110301L-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302L-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304L-XF ✓ 11.1 6.35 3.18 0.4 2.8 VCET 110301R-YF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-YF ✓ 11.1 6.35 3.18 0.2 2.8 110304R-YF ✓ 11.1 6.35 3.18 0.4 2.8 VCET 110301L-YF ✓ 11.1 6.35 3.18 0.1 2.8 IC042 110302L-YF ✓ 11.1 6.35 3.18 0.2 2.8 ~IC044 110304L-YF ✓ 11.1 6.35 3.18 0.4 2.8 VCEW 110301 ✓ 11.1 6.35 3.18 0.1 2.8 IC064~ IC065 110302 ✓ 11.1 6.35 3.18 0.2 2.8 110304 ✓ 11.1 6.35 3.18 0.4 2.8 VCGT 110302-AG ✓ ✓ 11.1 6.35 3.18 0.2 2.8 110304-AG ✓ ✓ 11.1 6.35 3.18 0.4 2.8 160402-AG ✓ ✓ 9.525 16.6 4.76 0.2 4.4 160404-AG ✓ ✓ 9.525 16.6 4.76 0.4 4.4 160408-AG ✓ ✓ 9.525 16.6 4.76 0.8 4.4 VCGT 110301-SG ✓ 11.1 6.35 3.18 0.1 2.8 110302-SG ✓ 11.1 6.35 3.18 0.2 2.8 110304-SG ✓ 11.1 6.35 3.18 0.4 2.8 Order No. = Item No. + Grade No. Chip control range 㝆ⷠ㔶⏅䵓⢜ (For Aluminum) (For Carbon steel) (For Alloy steel) 6 6 6 5 5 5 4 4 4 3 3 3 21 AG 2 XF1 SG 2 XF1 SG YF YF 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) IC011 ap (mm) ap (mm) ap (mm)
