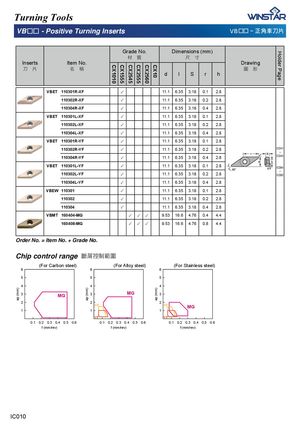

CX1010 CX1555 CX2545 CX2555 CX2560 CX10 Holder Page Turning Tools VBΩΩ - Positive Turning Inserts VBΩΩ . 㳲孡恙⎏䏖 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ d l S r h VBET 110301R-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304R-XF ✓ 11.1 6.35 3.18 0.4 2.8 VBET 110301L-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302L-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304L-XF ✓ 11.1 6.35 3.18 0.4 2.8 VBET 110301R-YF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-YF ✓ 11.1 6.35 3.18 0.2 2.8 IC041~ 110304R-YF ✓ 11.1 6.35 3.18 0.4 2.8 IC044 VBET 110301L-YF ✓ 11.1 6.35 3.18 0.1 2.8 IC064 110302L-YF ✓ 11.1 6.35 3.18 0.2 2.8 ~IC065 110304L-YF ✓ 11.1 6.35 3.18 0.4 2.8 VBEW 110301 ✓ 11.1 6.35 3.18 0.1 2.8 110302 ✓ 11.1 6.35 3.18 0.2 2.8 110304 ✓ 11.1 6.35 3.18 0.4 2.8 VBMT 160404-MG ✓ ✓ ✓ 9.53 16.6 4.76 0.4 4.4 160408-MG ✓ ✓ ✓ 9.53 16.6 4.76 0.8 4.4 Order No. = Item No. + Grade No. Chip control range 㝆ⷠ㔶⏅䵓⢜ (For Carbon steel) (For Alloy steel) (For Stainless steel) 6 6 6 5 5 5 4 4 4 3 MG 3 MG 3 2 2 XF 2 XF MG 1 1 1 YF YF 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) IC010 ap (mm) ap (mm) ap (mm)
