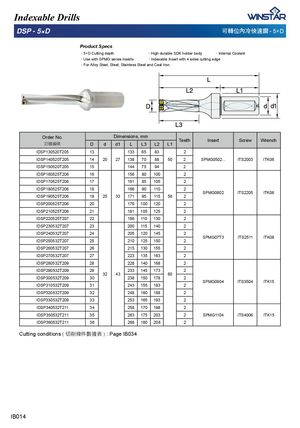

Каталог Winstar инструмент со сменными пластинами 2020 - страница 140

Indexable Drills DSP - 5×D ╾惘⃜⋶⍆ㅺ憮昌 - 5×D 3URGXFW6SHFV 虉5×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant 虉Use with SPMG series inserts 虉Indexable Insert with 4 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. Order No. Dimensions, mm Teeth Insert Screw Wrench 宑庋佷䩋 D d d1 L L3 L2 L1 IDSP130520T205 13 133 65 83 2 IDSP140520T205 14 20 27 138 70 88 50 2 SPMG0502... ITS2003 ITK06 IDSP150520T205 15 144 75 94 2 IDSP160525T206 16 156 80 100 2 IDSP170525T206 17 161 85 105 2 IDSP180525T206 18 166 90 110 2 SPMG0602 ITS2205 ITK06 IDSP190525T206 19 25 33 171 95 115 56 2 IDSP200525T206 20 176 100 120 2 IDSP210525T206 21 181 105 125 2 IDSP220525T207 22 186 110 130 2 IDSP230532T207 23 200 115 140 2 IDSP240532T207 24 205 120 145 2 SPMG07T3 ITS2511 ITK08 IDSP250532T207 25 210 125 150 2 IDSP260532T207 26 215 130 155 2 IDSP270532T207 27 223 135 163 2 IDSP280532T209 28 228 140 168 2 IDSP290532T209 29 233 145 173 2 32 43 60 IDSP300532T209 30 238 150 178 2 SPMG0904 ITS3504 ITK15 IDSP310532T209 31 243 155 183 2 IDSP320532T209 32 248 160 188 2 IDSP330532T209 33 253 165 193 2 IDSP340532T211 34 258 170 198 2 IDSP350532T211 35 263 175 203 2 SPMG1104 ITS4006 ITK15 IDSP360532T211 36 268 180 208 2 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034 IB014
