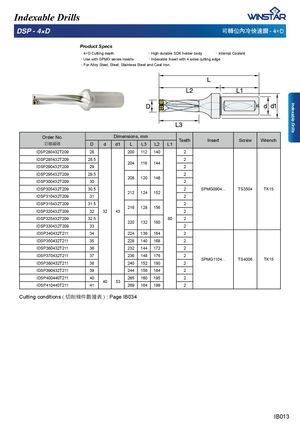

Indexable Drills Indexable Drills DSP - 4×D ╾惘⃜⋶⍆ㅺ憮昌 - 4×D 3URGXFW6SHFV 虉4×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant 虉Use with SPMG series inserts 虉Indexable Insert with 4 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. Order No. Dimensions, mm Teeth Insert Screw Wrench 宑庋佷䩋 D d d1 L L3 L2 L1 IDSP280432T209 28 200 112 140 2 IDSP285432T209 28.5 2 204 116 144 IDSP290432T209 29 2 IDSP295432T209 29.5 2 208 120 148 IDSP300432T209 30 2 IDSP305432T209 30.5 2 SPMG0904... TS3504 TK15 212 124 152 IDSP310432T209 31 2 IDSP315432T209 31.5 2 216 128 156 IDSP320432T209 32 32 43 2 IDSP325432T209 32.5 60 2 220 132 160 IDSP330432T209 33 2 IDSP340432T211 34 224 136 164 2 IDSP350432T211 35 228 140 168 2 IDSP360432T211 36 232 144 172 2 IDSP370432T211 37 236 148 176 2 SPMG1104... TS4006 TK15 IDSP380432T211 38 240 152 180 2 IDSP390432T211 39 244 156 184 2 IDSP400440T211 40 265 160 195 2 40 53 IDSP410440T211 41 269 164 199 2 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034 IB013
