Каталог Winstar инструмент со сменными пластинами 2020 - страница 103

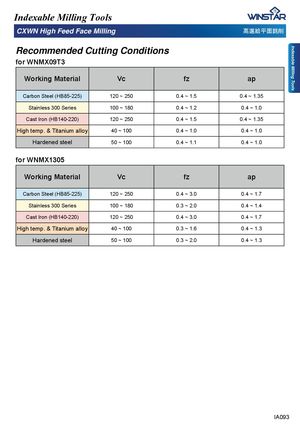

Indexable Milling Tools Indexable Milling Tools CXWN High Feed Face Milling 汧懁仵。棱搠⏙ Recommended Cutting Conditions for WNMX09T3 Working Material Vc fz ap Carbon Steel (HB85-225) 120 ~ 250 0.4 ~ 1.5 0.4 ~ 1.35 Stainless 300 Series 100 ~ 180 0.4 ~ 1.2 0.4 ~ 1.0 Cast Iron (HB140-220) 120 ~ 250 0.4 ~ 1.5 0.4 ~ 1.35 High temp. & Titanium alloy 40 ~ 100 0.4 ~ 1.0 0.4 ~ 1.0 Hardened steel 50 ~ 100 0.4 ~ 1.1 0.4 ~ 1.0 for WNMX1305 Working Material Vc fz ap Carbon Steel (HB85-225) 120 ~ 250 0.4 ~ 3.0 0.4 ~ 1.7 Stainless 300 Series 100 ~ 180 0.3 ~ 2.0 0.4 ~ 1.4 Cast Iron (HB140-220) 120 ~ 250 0.4 ~ 3.0 0.4 ~ 1.7 High temp. & Titanium alloy 40 ~ 100 0.3 ~ 1.6 0.4 ~ 1.3 Hardened steel 50 ~ 100 0.3 ~ 2.0 0.4 ~ 1.3 IA093
