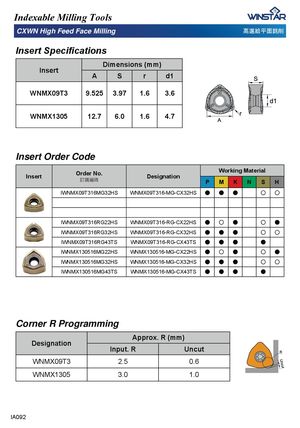

Indexable Milling Tools
CXWN High Feed Face Milling 汧懁仵。棱搠⏙

,QVHUW6SHFL¿FDWLRQV
Dimensions (mm)
Insert
A S r d1
WNMX09T3 9.525 3.97 1.6 3.6

WNMX1305 12.7 6.0 1.6 4.7


Insert Order Code
Order No. Working Material
Insert 宑庋佷䩋
Designation
P M K N S H
IWNMX09T316MG32HS WNMX09T316-MG-CX32HS β β β ΰ ΰ


IWNMX09T316RG22HS WNMX09T316-RG-CX22HS β ΰ β ΰ β
IWNMX09T316RG32HS WNMX09T316-RG-CX32HS β β β ΰ ΰ
IWNMX09T316RG43TS WNMX09T316-RG-CX43TS β β β β
IWNMX130516MG22HS WNMX130516-MG-CX22HS β ΰ β ΰ β
IWNMX130516MG32HS WNMX130516-MG-CX32HS β β β ΰ ΰ
IWNMX130516MG43TS WNMX130516-MG-CX43TS β β β β


Corner R Programming
Approx. R (mm)
Designation
Input. R Uncut
WNMX09T3 2.5 0.6
WNMX1305 3.0 1.0


IA092
