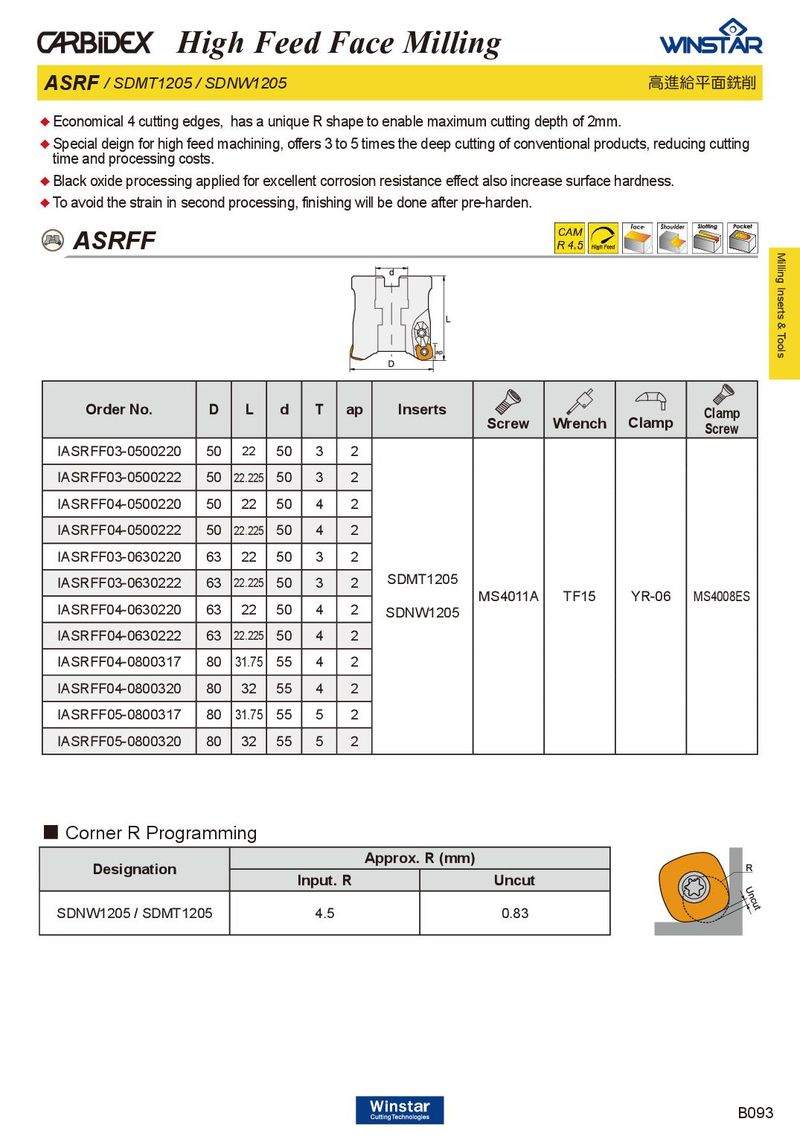

High Feed Face Milling ASRF / SDMT1205 / SDNW1205 高進給平面銑削 ♦ Economical 4 cutting edges, has a unique R shape to enable maximum cutting depth of 2mm. ♦ Special deign for high feed machining, offers 3 to 5 times the deep cutting of conventional products, reducing cutting time and processing costs. ♦ Black oxide processing applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. ASRFF Milling Inserts & Tools ap Order No. D L d T ap Inserts Clamp Screw Wrench Clamp Screw IASRFF03-0500220 50 22 50 3 2 IASRFF03-0500222 50 22.225 50 3 2 IASRFF04-0500220 50 22 50 4 2 IASRFF04-0500222 50 22.225 50 4 2 IASRFF03-0630220 63 22 50 3 2 IASRFF03-0630222 63 22.225 50 3 2 SDMT1205 MS4011A TF15 YR-06 MS4008ES IASRFF04-0630220 63 22 50 4 2 SDNW1205 IASRFF04-0630222 63 22.225 50 4 2 IASRFF04-0800317 80 31.75 55 4 2 IASRFF04-0800320 80 32 55 4 2 IASRFF05-0800317 80 31.75 55 5 2 IASRFF05-0800320 80 32 55 5 2 ■ Corner R Programming Approx. R (mm) Designation Input. R Uncut SDNW1205 / SDMT1205 4.5 0.83 B093
