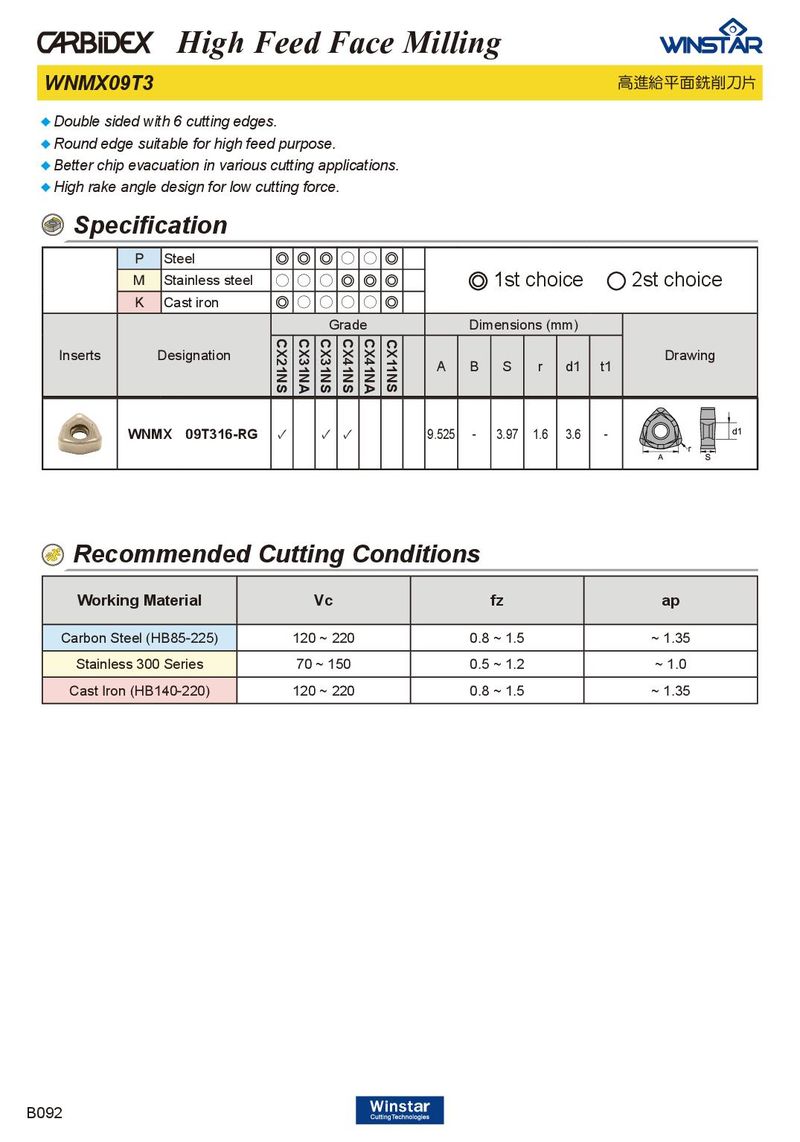

High Feed Face Milling WNMX09T3 高進給平面銑削刀片 ♦ Double sided with 6 cutting edges. ♦ Round edge suitable for high feed purpose. ♦ Better chip evacuation in various cutting applications. ♦ High rake angle design for low cutting force. Specification P Steel ◎ ◎ ◎ ○ ○ ◎ M Stainless steel ○ ○ ○ ◎ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ ◎ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA CX11NS Inserts Designation Drawing A B S r d1 t1 WNMX 09T316-RG ✓ ✓ ✓ 9.525 - 3.97 1.6 3.6 - Recommended Cutting Conditions Working Material Vc fz ap Carbon Steel (HB85-225) 120 ~ 220 0.8 ~ 1.5 ~ 1.35 Stainless 300 Series 70 ~ 150 0.5 ~ 1.2 ~ 1.0 Cast Iron (HB140-220) 120 ~ 220 0.8 ~ 1.5 ~ 1.35 B092
