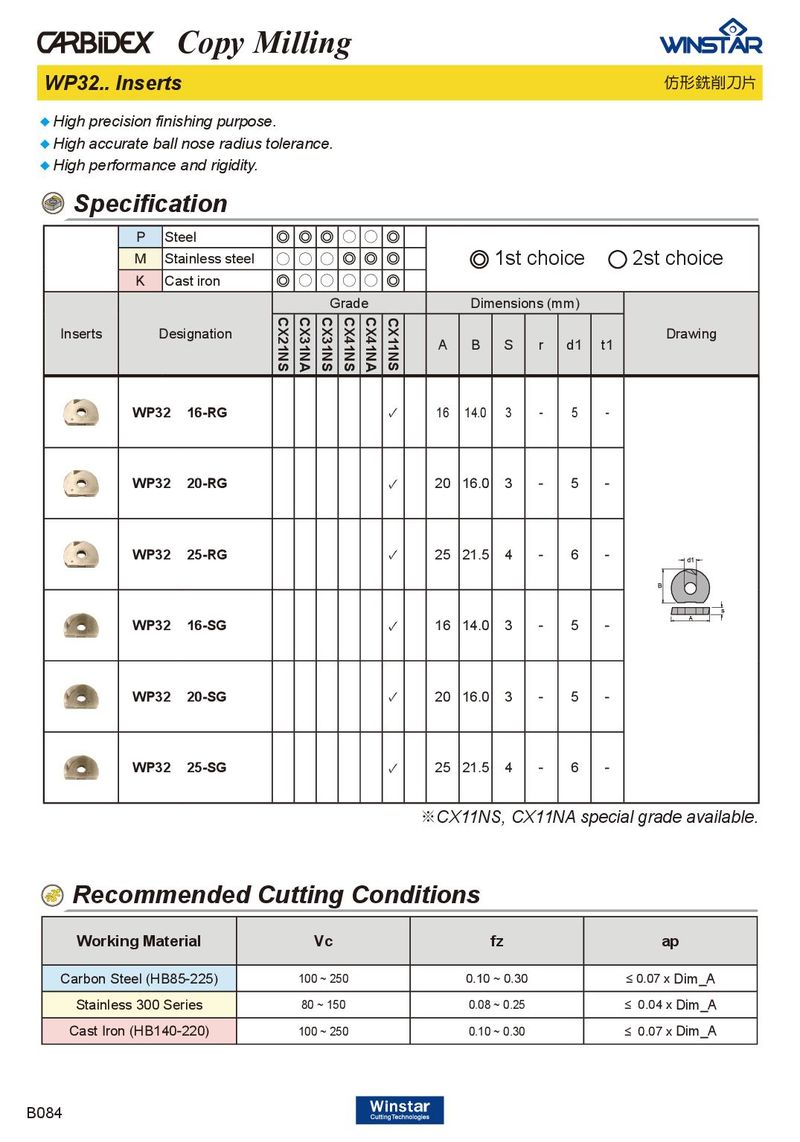

Copy Milling WP32.. Inserts 仿形銑削刀片 ♦ High precision finishing purpose. ♦ High accurate ball nose radius tolerance. ♦ High performance and rigidity. Specification P Steel ◎ ◎ ◎ ○ ○ ◎ M Stainless steel ○ ○ ○ ◎ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ ◎ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA CX11NS Inserts Designation Drawing A B S r d1 t1 WP32 16-RG ✓ 16 14.0 3 - 5 - WP32 20-RG ✓ 20 16.0 3 - 5 - WP32 25-RG ✓ 25 21.5 4 - 6 - WP32 16-SG ✓ 16 14.0 3 - 5 - WP32 20-SG ✓ 20 16.0 3 - 5 - WP32 25-SG ✓ 25 21.5 4 - 6 - ※ CX11NS, CX11NA special grade available. Recommended Cutting Conditions Working Material Vc fz ap Carbon Steel (HB85-225) 100 ~ 250 0.10 ~ 0.30 ≤ 0.07 x Dim_A Stainless 300 Series 80 ~ 150 0.08 ~ 0.25 ≤ 0.04 x Dim_A Cast Iron (HB140-220) 100 ~ 250 0.10 ~ 0.30 ≤ 0.07 x Dim_A B084
