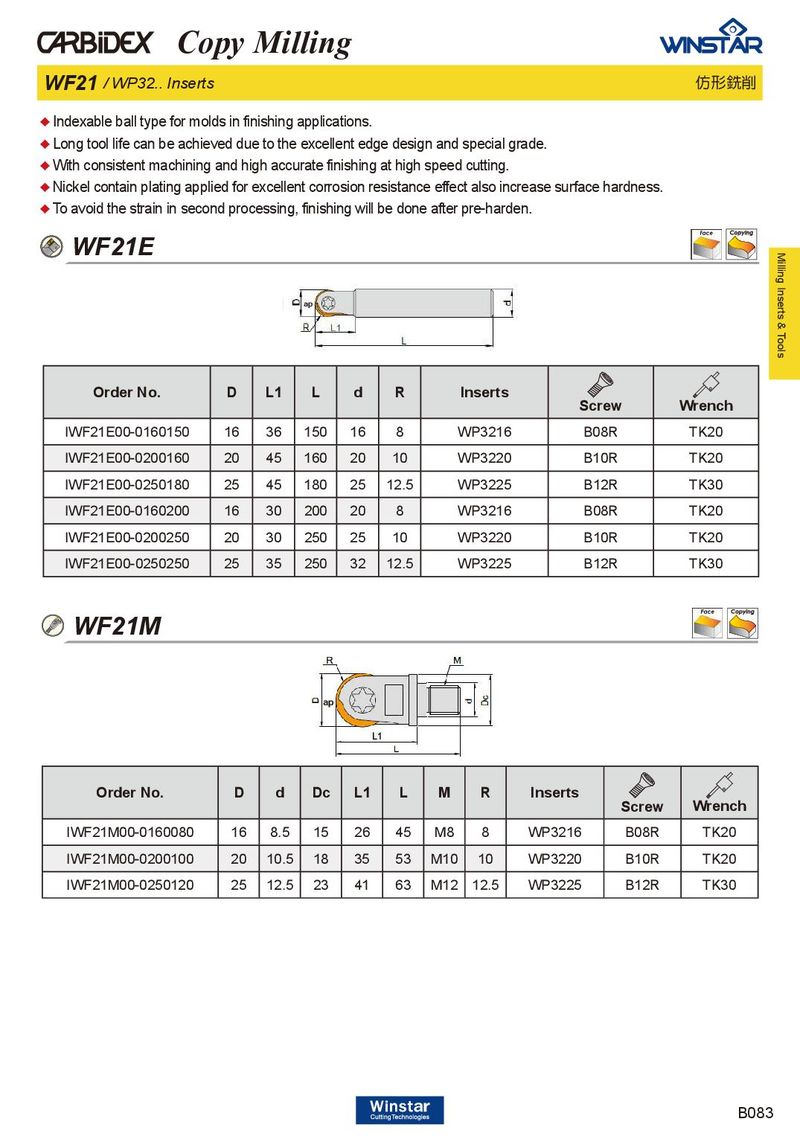

Copy Milling WF21 / WP32.. Inserts 仿形銑削 ♦ Indexable ball type for molds in finishing applications. ♦ Long tool life can be achieved due to the excellent edge design and special grade. ♦ With consistent machining and high accurate finishing at high speed cutting. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. WF21E Milling Inserts & Tools ap Order No. D L1 L d R Inserts Screw Wrench IWF21E00-0160150 16 36 150 16 8 WP3216 B08R TK20 IWF21E00-0200160 20 45 160 20 10 WP3220 B10R TK20 IWF21E00-0250180 25 45 180 25 12.5 WP3225 B12R TK30 IWF21E00-0160200 16 30 200 20 8 WP3216 B08R TK20 IWF21E00-0200250 20 30 250 25 10 WP3220 B10R TK20 IWF21E00-0250250 25 35 250 32 12.5 WP3225 B12R TK30 WF21M ap Order No. D d Dc L1 L M R Inserts Screw Wrench IWF21M00-0160080 16 8.5 15 26 45 M8 8 WP3216 B08R TK20 IWF21M00-0200100 20 10.5 18 35 53 M10 10 WP3220 B10R TK20 IWF21M00-0250120 25 12.5 23 41 63 M12 12.5 WP3225 B12R TK30 B083
