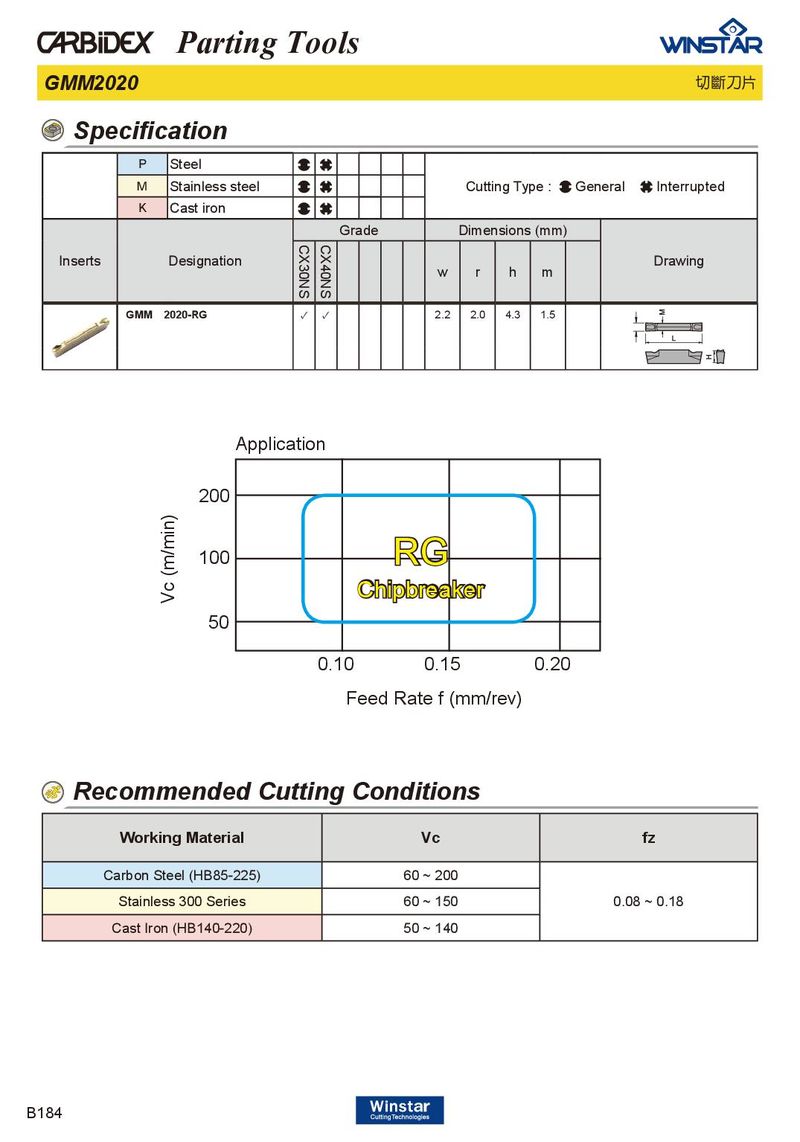

Parting Tools
GMM2020 切斷刀片

Specification
P Steel
M Stainless steel Cutting Type : General Interrupted
K Cast iron
Grade Dimensions (mm)

CX30NS
CX40NS
Inserts Designation Drawing
w r h m

GMM 2020-RG ✓ ✓ 2.2 2.0 4.3 1.5


Application
200
Vc (m/min)


100 RG
Chipbreaker
50
0.10 0.15 0.20
Feed Rate f (mm/rev)


Recommended Cutting Conditions
Working Material Vc fz
Carbon Steel (HB85-225) 60 ~ 200
Stainless 300 Series 60 ~ 150 0.08 ~ 0.18
Cast Iron (HB140-220) 50 ~ 140


B184
