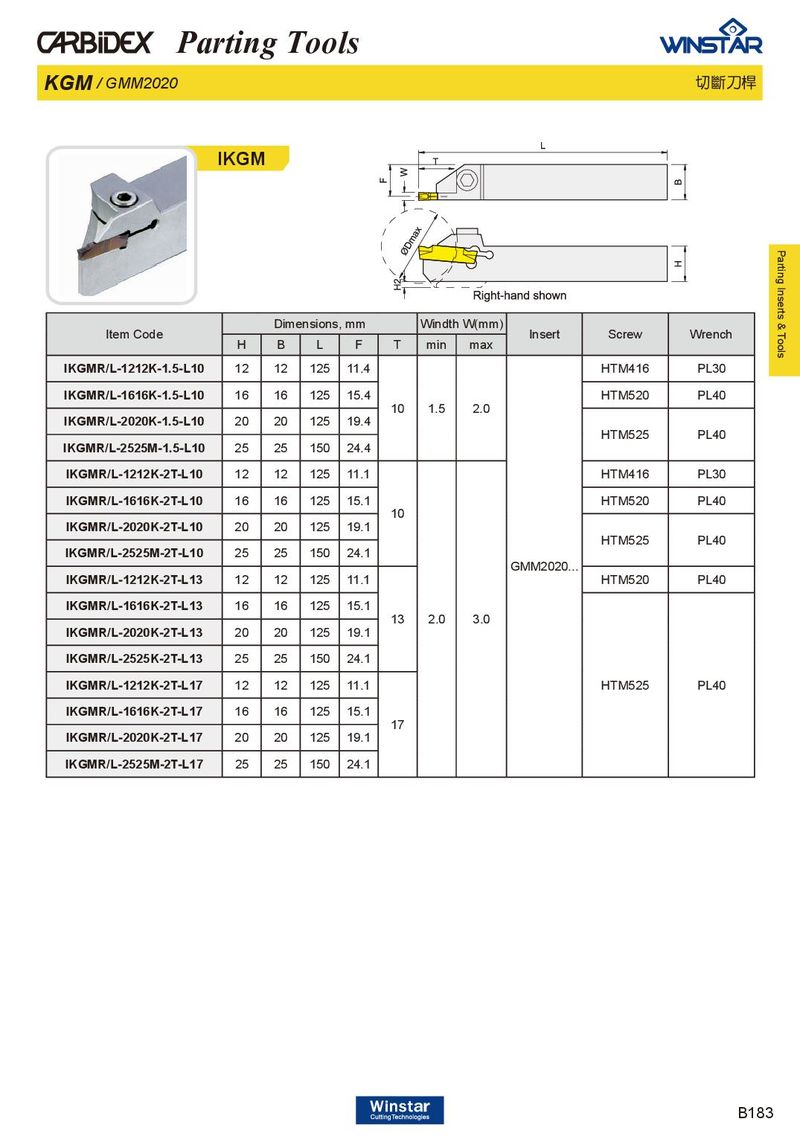

KGM / GMM2020 切斷刀桿
IKGM
Dimensions, mm Windth W(mm)
Item Code Insert Screw Wrench
| H | B | L | F | T | min | max | |||
| IKGMR/L-1212K-1.5-L10 | 12 | 12 | 125 | 11.4 | HTM416 | PL30 | |||
| IKGMR/L-1616K-1.5-L10 | 16 | 16 | 125 15.4 | HTM520 | PL40 | ||||
| 10 | 1.5 | 2.0 | |||||||
| IKGMR/L-2020K-1.5-L10 | 20 | 20 | 125 19.4 |
HTM525 PL40
| IKGMR/L-2525M-1.5-L10 | 25 | 25 | 150 24.4 | |||
| IKGMR/L-1212K-2T-L10 | 12 | 12 | 125 | 11.1 | HTM416 | PL30 |
| IKGMR/L-1616K-2T-L10 | 16 | 16 | 125 15.1 | HTM520 | PL40 |
10
IKGMR/L-2020K-2T-L10 20 20 125 19.1
HTM525 PL40
IKGMR/L-2525M-2T-L10 25 25 150 24.1
GMM2020...
| IKGMR/L-1212K-2T-L13 | 12 | 12 | 125 | 11.1 | HTM520 | PL40 |
| IKGMR/L-1616K-2T-L13 | 16 | 16 | 125 15.1 |
13 2.0 3.0
| IKGMR/L-2020K-2T-L13 | 20 | 20 | 125 19.1 | |||
| IKGMR/L-2525K-2T-L13 | 25 | 25 | 150 24.1 | |||
| IKGMR/L-1212K-2T-L17 | 12 | 12 | 125 | 11.1 | HTM525 | PL40 |
| IKGMR/L-1616K-2T-L17 | 16 | 16 | 125 15.1 |
17
| IKGMR/L-2020K-2T-L17 | 20 | 20 | 125 19.1 |
| IKGMR/L-2525M-2T-L17 | 25 | 25 | 150 24.1 |
