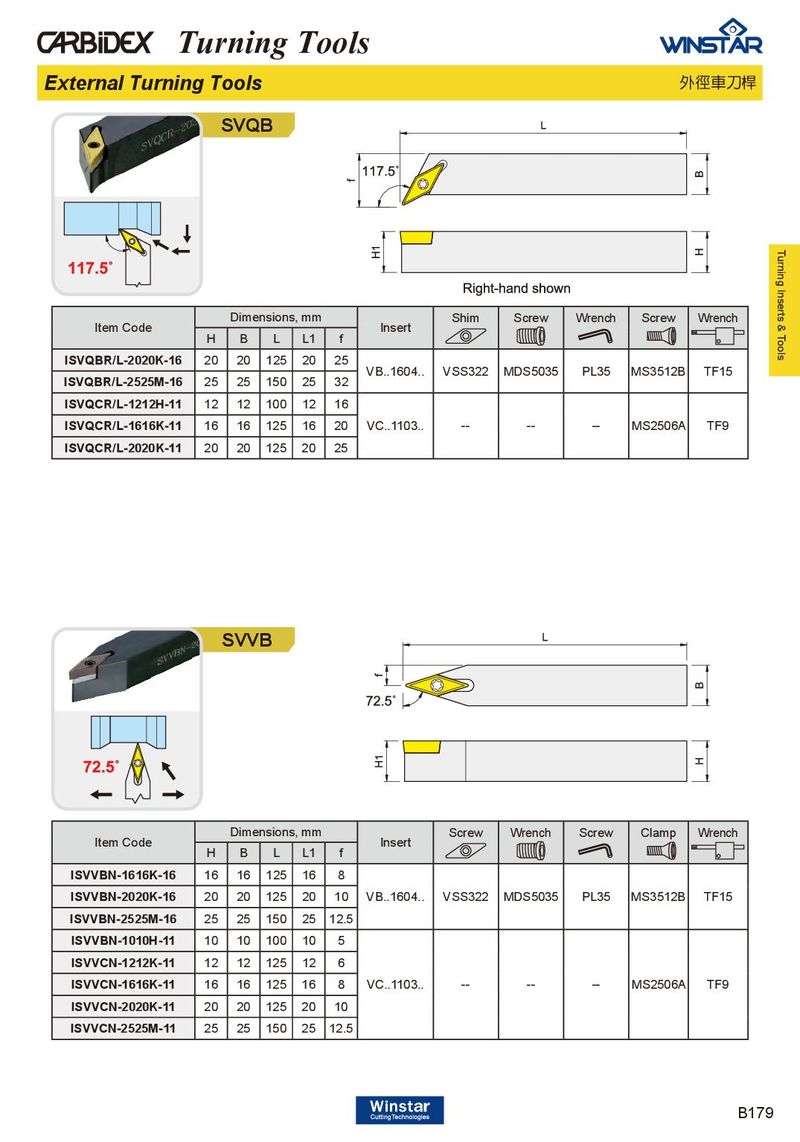

Каталог Winstar твердосплавные пластины и вставки - страница 185

SVQB

Dimensions, mm Shim Screw Wrench Screw Wrench

Item Code Insert

H B L L1 f

ISVQBR/L-2020K-16 20 20 125 20 25

VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15

ISVQBR/L-2525M-16 25 25 150 25 32 ISVQCR/L-1212H-11 12 12 100 12 16

ISVQCR/L-1616K-11 16 16 125 16 20 VC..1103.. -- -- -- MS2506A TF9

ISVQCR/L-2020K-11 20 20 125 20 25

SVVB

Dimensions, mm Screw Wrench Screw Clamp Wrench

Item Code Insert

ISVVBN-2525M-16 25 25 150 25 12.5

ISVVCN-1616K-11 16 16 125 16 8 VC..1103.. -- -- -- MS2506A TF9

ISVVCN-2020K-11 20 20 125 20 10 ISVVCN-2525M-11 25 25 150 25 12.5
