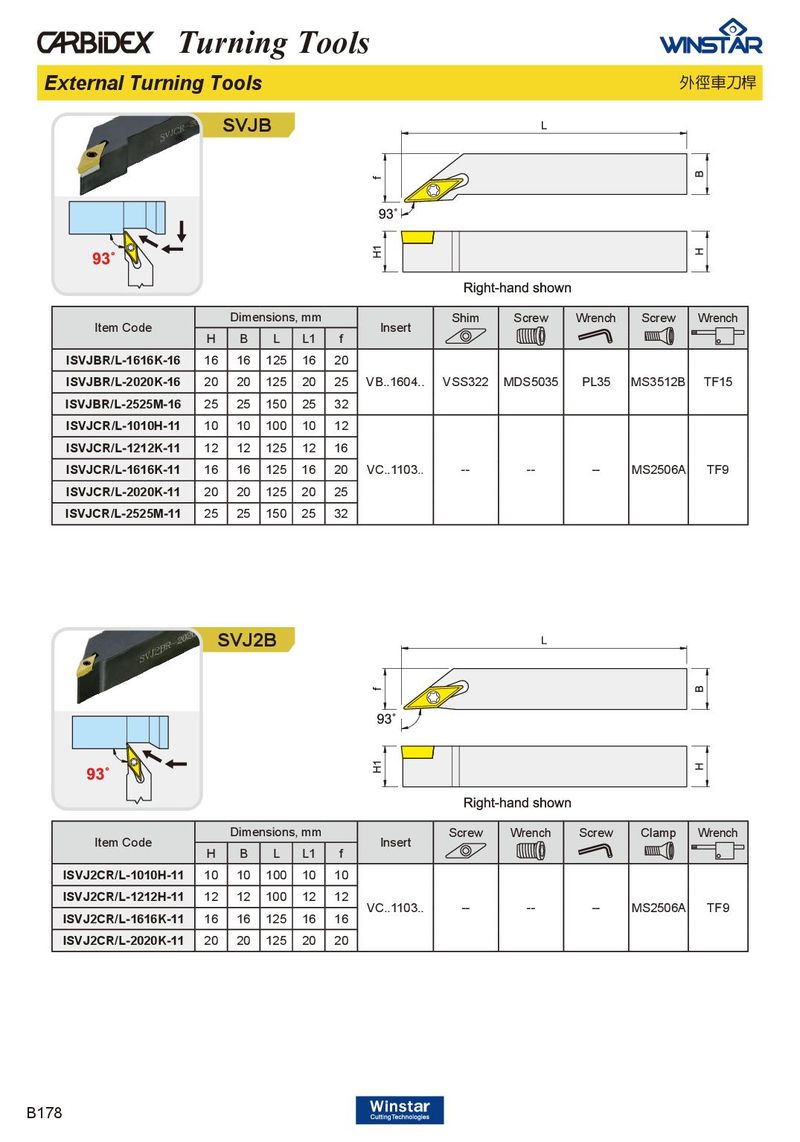

SVJB
Dimensions, mm Shim Screw Wrench Screw Wrench
Item Code Insert
H B L L1 f
ISVJBR/L-1616K-16 16 16 125 16 20
ISVJBR/L-2020K-16 20 20 125 20 25 VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15
ISVJBR/L-2525M-16 25 25 150 25 32
| ISVJCR/L-1010H-11 | 10 | 10 100 10 | 12 | ||||||
| ISVJCR/L-1212K-11 | 12 | 12 125 12 | 16 | ||||||
| ISVJCR/L-1616K-11 | 16 | 16 125 16 | 20 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| ISVJCR/L-2020K-11 | 20 | 20 125 20 | 25 | ||||||
| ISVJCR/L-2525M-11 | 25 | 25 150 25 | 32 |
SVJ2B
Dimensions, mm Screw Wrench Screw Clamp Wrench
Item Code Insert
H B L L1 f
ISVJ2CR/L-1010H-11 10 10 100 10 10 ISVJ2CR/L-1212H-11 12 12 100 12 12
VC..1103.. -- -- -- MS2506A TF9
ISVJ2CR/L-1616K-11 16 16 125 16 16 ISVJ2CR/L-2020K-11 20 20 125 20 20
