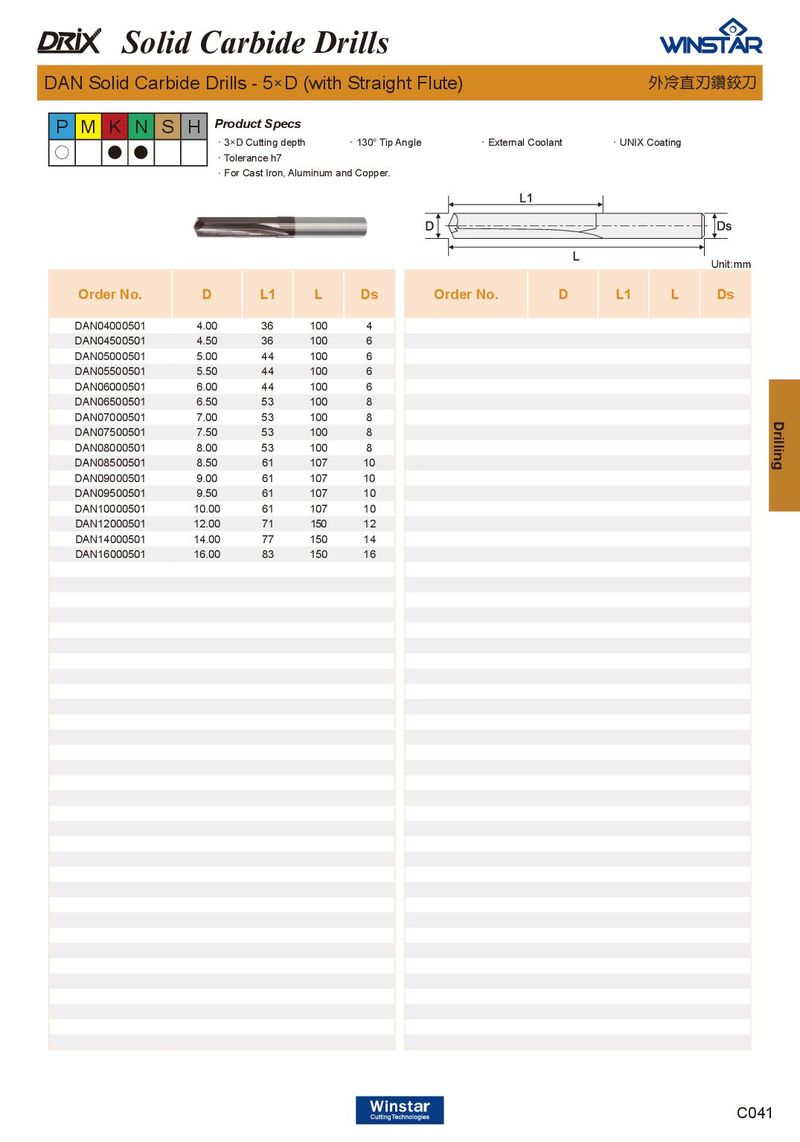

DAN Solid Carbide Drills - 5×D (with Straight Flute) 外冷直刃鑽鉸刀
| PMKN | S | H Pro | duct Spec | s | ||||||
| ○ ●● | ．3× ．Tol | D Cutting de erance h7 | pth | ．130° Tip An | gle ．Ext | ernal Coolant | ．UNIX C | oating | ||
| ．For | Cast Iron, A | luminum a | nd Copper. | |||||||
| Unit:mm | ||||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds | |
| DAN04000501 | 4.00 | 36 | 100 | 4 | ||||||
| DAN04500501 | 4.50 | 36 | 100 | 6 | ||||||
| DAN05000501 | 5.00 | 44 | 100 | 6 | ||||||
| DAN05500501 | 5.50 | 44 | 100 | 6 | ||||||
| DAN06000501 | 6.00 | 44 | 100 | 6 | ||||||
| DAN06500501 | 6.50 | 53 | 100 | 8 | ||||||
| DAN07000501 | 7.00 | 53 | 100 | 8 | ||||||
| DAN07500501 | 7.50 | 53 | 100 | 8 | ||||||
| DAN08000501 | 8.00 | 53 | 100 | 8 | ||||||
| DAN08500501 | 8.50 | 61 | 107 | 10 | ||||||
| DAN09000501 | 9.00 | 61 | 107 | 10 | ||||||
| DAN09500501 | 9.50 | 61 | 107 | 10 | ||||||
| DAN10000501 | 10.00 | 61 | 107 | 10 | ||||||
| DAN12000501 | 12.00 | 71 | 150 | 12 | ||||||
| DAN14000501 | 14.00 | 77 | 150 | 14 | ||||||
| DAN16000501 | 16.00 | 83 | 150 | 16 |
