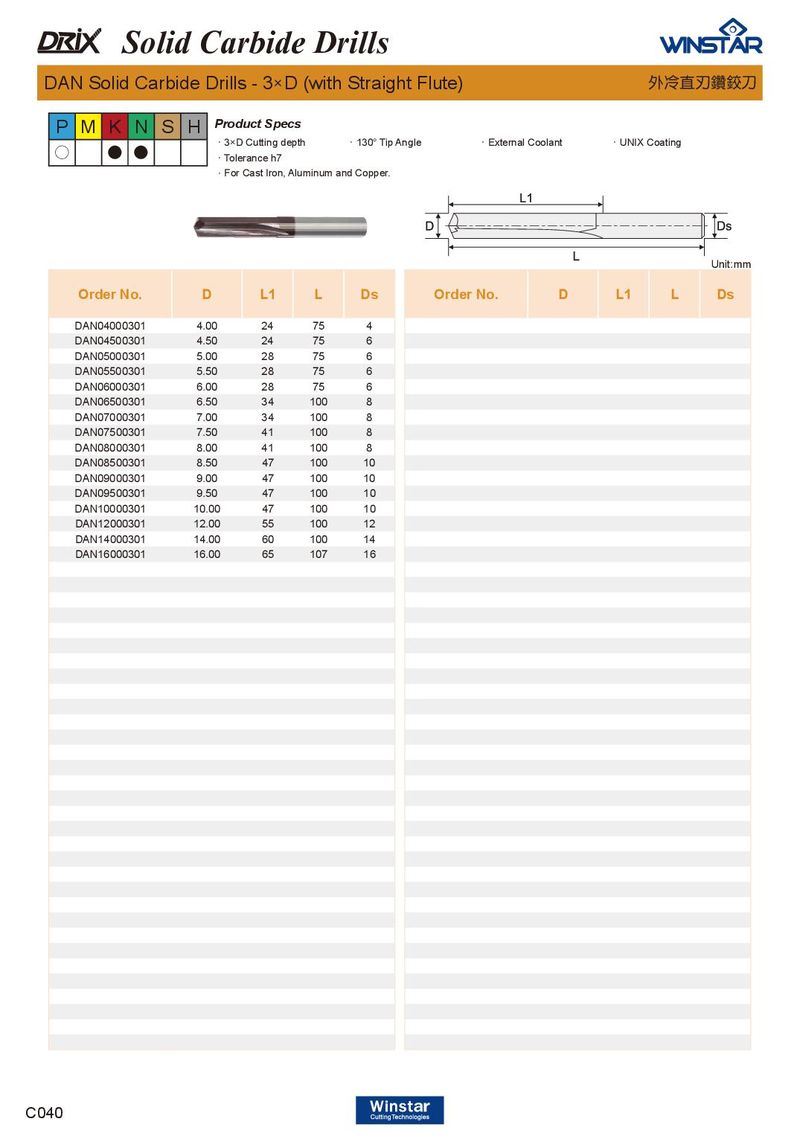

DAN Solid Carbide Drills - 3×D (with Straight Flute) 外冷直刃鑽鉸刀
| PMKN | S | H Pro | duct Spec | s | ||||||
| ○ ●● | ．3× ．Tol | D Cutting de erance h7 | pth | ．130° Tip An | gle ．Ext | ernal Coolant | ．UNIX C | oating | ||
| ．For | Cast Iron, A | luminum a | nd Copper. | |||||||
| Unit:mm | ||||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds | |
| DAN04000301 | 4.00 | 24 | 75 | 4 | ||||||
| DAN04500301 | 4.50 | 24 | 75 | 6 | ||||||
| DAN05000301 | 5.00 | 28 | 75 | 6 | ||||||
| DAN05500301 | 5.50 | 28 | 75 | 6 | ||||||
| DAN06000301 | 6.00 | 28 | 75 | 6 | ||||||
| DAN06500301 | 6.50 | 34 | 100 | 8 | ||||||
| DAN07000301 | 7.00 | 34 | 100 | 8 | ||||||
| DAN07500301 | 7.50 | 41 | 100 | 8 | ||||||
| DAN08000301 | 8.00 | 41 | 100 | 8 | ||||||
| DAN08500301 | 8.50 | 47 | 100 | 10 | ||||||
| DAN09000301 | 9.00 | 47 | 100 | 10 | ||||||
| DAN09500301 | 9.50 | 47 | 100 | 10 | ||||||
| DAN10000301 | 10.00 | 47 | 100 | 10 | ||||||
| DAN12000301 | 12.00 | 55 | 100 | 12 | ||||||
| DAN14000301 | 14.00 | 60 | 100 | 14 | ||||||
| DAN16000301 | 16.00 | 65 | 107 | 16 |
