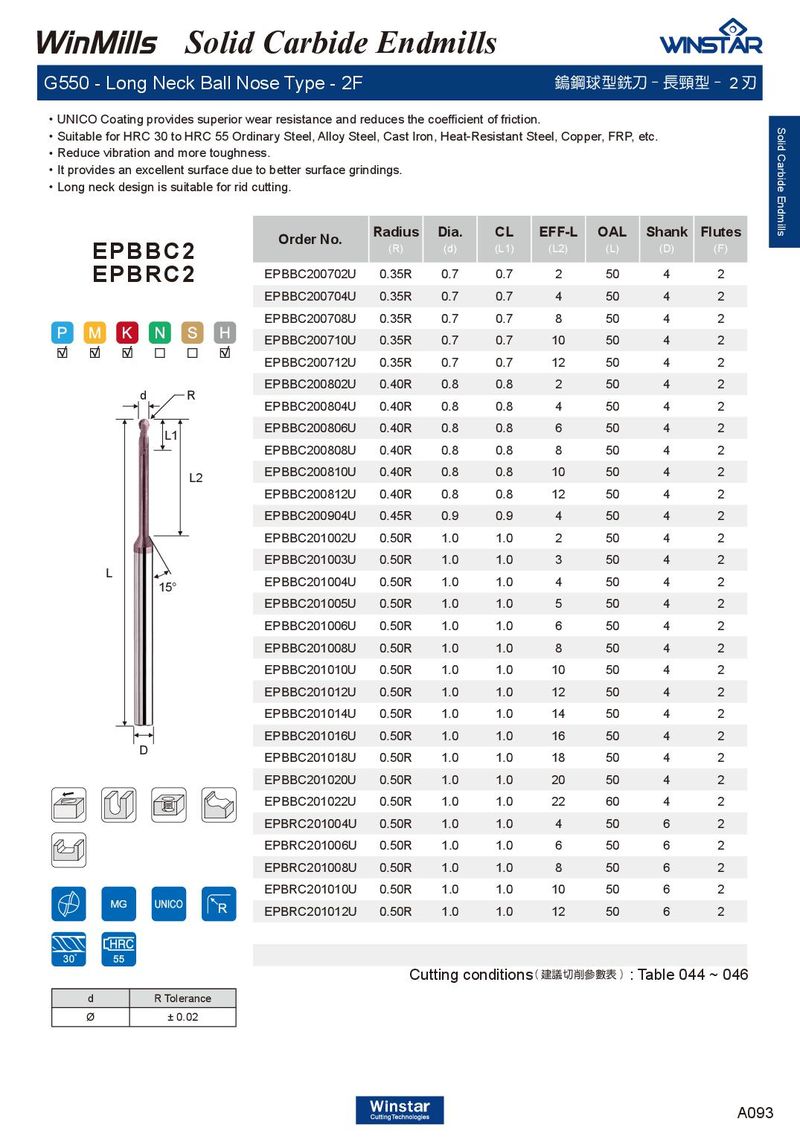

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ．Reduce vibration and more toughness. ．It provides an excellent surface due to better surface grindings. ．Long neck design is suitable for rid cutting.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPBBC200702U | 0.35R | 0.7 | 0.7 | 2 | 50 | 4 | 2 |
| EPBBC200704U | 0.35R | 0.7 | 0.7 | 4 | 50 | 4 | 2 |
| EPBBC200708U | 0.35R | 0.7 | 0.7 | 8 | 50 | 4 | 2 |
| EPBBC200710U | 0.35R | 0.7 | 0.7 | 10 | 50 | 4 | 2 |
| EPBBC200712U | 0.35R | 0.7 | 0.7 | 12 | 50 | 4 | 2 |
| EPBBC200802U | 0.40R | 0.8 | 0.8 | 2 | 50 | 4 | 2 |
| EPBBC200804U | 0.40R | 0.8 | 0.8 | 4 | 50 | 4 | 2 |
| EPBBC200806U | 0.40R | 0.8 | 0.8 | 6 | 50 | 4 | 2 |
| EPBBC200808U | 0.40R | 0.8 | 0.8 | 8 | 50 | 4 | 2 |
| EPBBC200810U | 0.40R | 0.8 | 0.8 | 10 | 50 | 4 | 2 |
| EPBBC200812U | 0.40R | 0.8 | 0.8 | 12 | 50 | 4 | 2 |
| EPBBC200904U | 0.45R | 0.9 | 0.9 | 4 | 50 | 4 | 2 |
| EPBBC201002U | 0.50R | 1.0 | 1.0 | 2 | 50 | 4 | 2 |
| EPBBC201003U | 0.50R | 1.0 | 1.0 | 3 | 50 | 4 | 2 |
| EPBBC201004U | 0.50R | 1.0 | 1.0 | 4 | 50 | 4 | 2 |
| EPBBC201005U | 0.50R | 1.0 | 1.0 | 5 | 50 | 4 | 2 |
| EPBBC201006U | 0.50R | 1.0 | 1.0 | 6 | 50 | 4 | 2 |
| EPBBC201008U | 0.50R | 1.0 | 1.0 | 8 | 50 | 4 | 2 |
| EPBBC201010U | 0.50R | 1.0 | 1.0 | 10 | 50 | 4 | 2 |
| EPBBC201012U | 0.50R | 1.0 | 1.0 | 12 | 50 | 4 | 2 |
| EPBBC201014U | 0.50R | 1.0 | 1.0 | 14 | 50 | 4 | 2 |
| EPBBC201016U | 0.50R | 1.0 | 1.0 | 16 | 50 | 4 | 2 |
| EPBBC201018U | 0.50R | 1.0 | 1.0 | 18 | 50 | 4 | 2 |
| EPBBC201020U | 0.50R | 1.0 | 1.0 | 20 | 50 | 4 | 2 |
| EPBBC201022U | 0.50R | 1.0 | 1.0 | 22 | 60 | 4 | 2 |
| EPBRC201004U | 0.50R | 1.0 | 1.0 | 4 | 50 | 6 | 2 |
| EPBRC201006U | 0.50R | 1.0 | 1.0 | 6 | 50 | 6 | 2 |
| EPBRC201008U | 0.50R | 1.0 | 1.0 | 8 | 50 | 6 | 2 |
| EPBRC201010U | 0.50R | 1.0 | 1.0 | 10 | 50 | 6 | 2 |
| EPBRC201012U | 0.50R | 1.0 | 1.0 | 12 | 50 | 6 | 2 |
EPBRC2
d R L1
L
D
d R Tolerance Ø ± 0.02
Cutting conditions : Table 044 ~ 046
( 建議切削參數表 )
