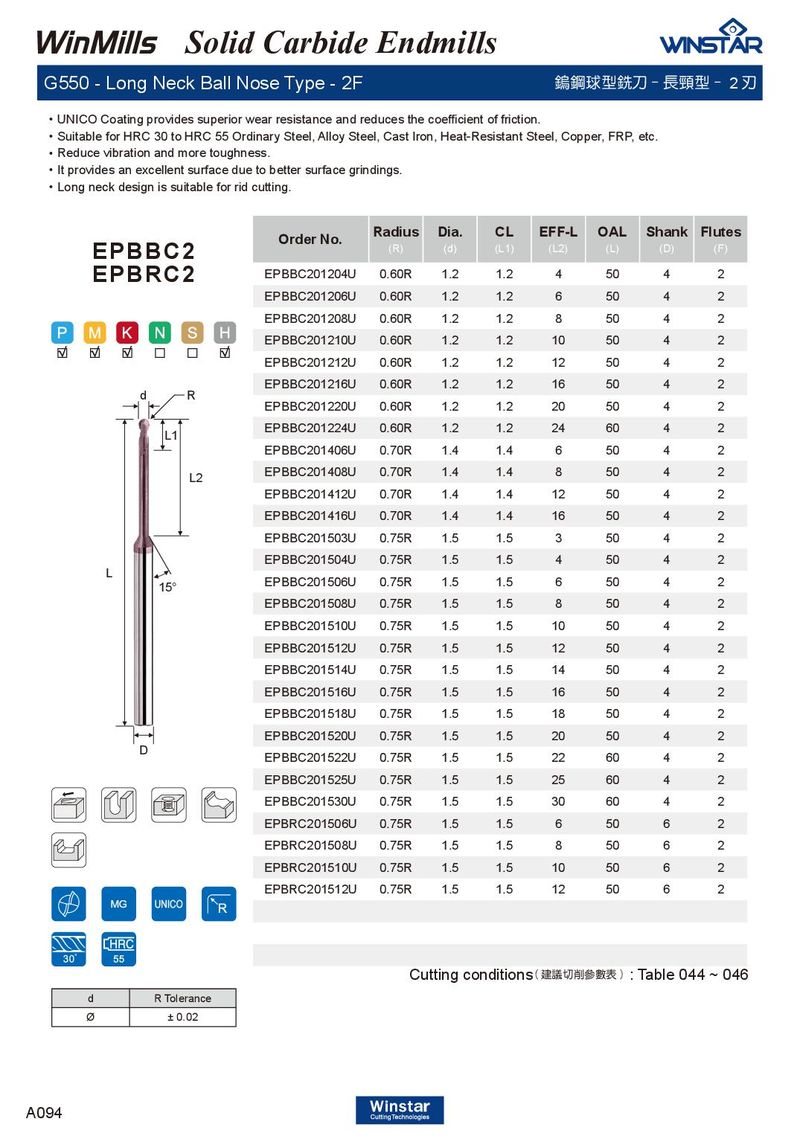

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ．Reduce vibration and more toughness. ．It provides an excellent surface due to better surface grindings. ．Long neck design is suitable for rid cutting.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPBBC201204U | 0.60R | 1.2 | 1.2 | 4 | 50 | 4 | 2 |
| EPBBC201206U | 0.60R | 1.2 | 1.2 | 6 | 50 | 4 | 2 |
| EPBBC201208U | 0.60R | 1.2 | 1.2 | 8 | 50 | 4 | 2 |
| EPBBC201210U | 0.60R | 1.2 | 1.2 | 10 | 50 | 4 | 2 |
| EPBBC201212U | 0.60R | 1.2 | 1.2 | 12 | 50 | 4 | 2 |
| EPBBC201216U | 0.60R | 1.2 | 1.2 | 16 | 50 | 4 | 2 |
| EPBBC201220U | 0.60R | 1.2 | 1.2 | 20 | 50 | 4 | 2 |
| EPBBC201224U | 0.60R | 1.2 | 1.2 | 24 | 60 | 4 | 2 |
| EPBBC201406U | 0.70R | 1.4 | 1.4 | 6 | 50 | 4 | 2 |
| EPBBC201408U | 0.70R | 1.4 | 1.4 | 8 | 50 | 4 | 2 |
| EPBBC201412U | 0.70R | 1.4 | 1.4 | 12 | 50 | 4 | 2 |
| EPBBC201416U | 0.70R | 1.4 | 1.4 | 16 | 50 | 4 | 2 |
| EPBBC201503U | 0.75R | 1.5 | 1.5 | 3 | 50 | 4 | 2 |
| EPBBC201504U | 0.75R | 1.5 | 1.5 | 4 | 50 | 4 | 2 |
| EPBBC201506U | 0.75R | 1.5 | 1.5 | 6 | 50 | 4 | 2 |
| EPBBC201508U | 0.75R | 1.5 | 1.5 | 8 | 50 | 4 | 2 |
| EPBBC201510U | 0.75R | 1.5 | 1.5 | 10 | 50 | 4 | 2 |
| EPBBC201512U | 0.75R | 1.5 | 1.5 | 12 | 50 | 4 | 2 |
| EPBBC201514U | 0.75R | 1.5 | 1.5 | 14 | 50 | 4 | 2 |
| EPBBC201516U | 0.75R | 1.5 | 1.5 | 16 | 50 | 4 | 2 |
| EPBBC201518U | 0.75R | 1.5 | 1.5 | 18 | 50 | 4 | 2 |
| EPBBC201520U | 0.75R | 1.5 | 1.5 | 20 | 50 | 4 | 2 |
| EPBBC201522U | 0.75R | 1.5 | 1.5 | 22 | 60 | 4 | 2 |
| EPBBC201525U | 0.75R | 1.5 | 1.5 | 25 | 60 | 4 | 2 |
| EPBBC201530U | 0.75R | 1.5 | 1.5 | 30 | 60 | 4 | 2 |
| EPBRC201506U | 0.75R | 1.5 | 1.5 | 6 | 50 | 6 | 2 |
| EPBRC201508U | 0.75R | 1.5 | 1.5 | 8 | 50 | 6 | 2 |
| EPBRC201510U | 0.75R | 1.5 | 1.5 | 10 | 50 | 6 | 2 |
| EPBRC201512U | 0.75R | 1.5 | 1.5 | 12 | 50 | 6 | 2 |
EPBRC2
d R L1
L
D
d R Tolerance Ø ± 0.02
Cutting conditions : Table 044 ~ 046
( 建議切削參數表 )
