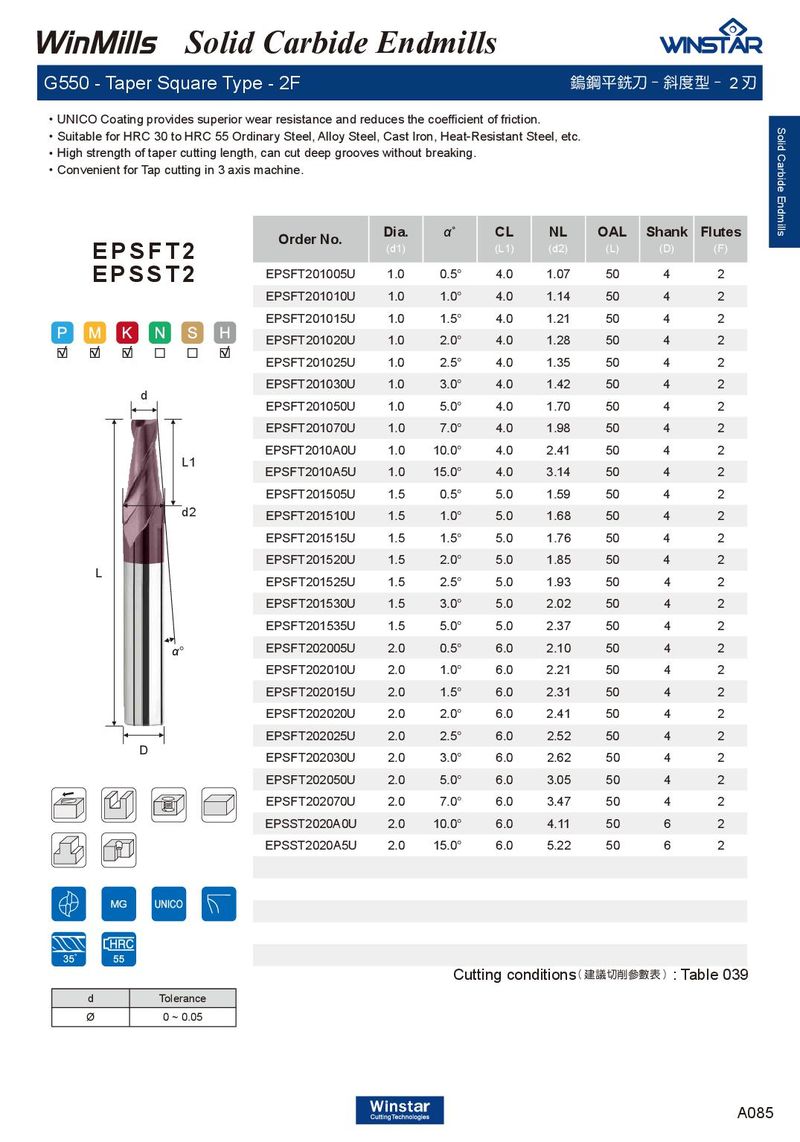

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．High strength of taper cutting length, can cut deep grooves without breaking. ．Convenient for Tap cutting in 3 axis machine.
| Order No. | Dia. (d1) | α˚ | CL (L1) | NL (d2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSFT201005U | 1.0 | 0.5° | 4.0 | 1.07 | 50 | 4 | 2 |
| EPSFT201010U | 1.0 | 1.0° | 4.0 | 1.14 | 50 | 4 | 2 |
| EPSFT201015U | 1.0 | 1.5° | 4.0 | 1.21 | 50 | 4 | 2 |
| EPSFT201020U | 1.0 | 2.0° | 4.0 | 1.28 | 50 | 4 | 2 |
| EPSFT201025U | 1.0 | 2.5° | 4.0 | 1.35 | 50 | 4 | 2 |
| EPSFT201030U | 1.0 | 3.0° | 4.0 | 1.42 | 50 | 4 | 2 |
| EPSFT201050U | 1.0 | 5.0° | 4.0 | 1.70 | 50 | 4 | 2 |
| EPSFT201070U | 1.0 | 7.0° | 4.0 | 1.98 | 50 | 4 | 2 |
| EPSFT2010A0U | 1.0 | 10.0° | 4.0 | 2.41 | 50 | 4 | 2 |
| EPSFT2010A5U | 1.0 | 15.0° | 4.0 | 3.14 | 50 | 4 | 2 |
| EPSFT201505U | 1.5 | 0.5° | 5.0 | 1.59 | 50 | 4 | 2 |
| EPSFT201510U | 1.5 | 1.0° | 5.0 | 1.68 | 50 | 4 | 2 |
| EPSFT201515U | 1.5 | 1.5° | 5.0 | 1.76 | 50 | 4 | 2 |
| EPSFT201520U | 1.5 | 2.0° | 5.0 | 1.85 | 50 | 4 | 2 |
| EPSFT201525U | 1.5 | 2.5° | 5.0 | 1.93 | 50 | 4 | 2 |
| EPSFT201530U | 1.5 | 3.0° | 5.0 | 2.02 | 50 | 4 | 2 |
| EPSFT201535U | 1.5 | 5.0° | 5.0 | 2.37 | 50 | 4 | 2 |
| EPSFT202005U | 2.0 | 0.5° | 6.0 | 2.10 | 50 | 4 | 2 |
| EPSFT202010U | 2.0 | 1.0° | 6.0 | 2.21 | 50 | 4 | 2 |
| EPSFT202015U | 2.0 | 1.5° | 6.0 | 2.31 | 50 | 4 | 2 |
| EPSFT202020U | 2.0 | 2.0° | 6.0 | 2.41 | 50 | 4 | 2 |
| EPSFT202025U | 2.0 | 2.5° | 6.0 | 2.52 | 50 | 4 | 2 |
| EPSFT202030U | 2.0 | 3.0° | 6.0 | 2.62 | 50 | 4 | 2 |
| EPSFT202050U | 2.0 | 5.0° | 6.0 | 3.05 | 50 | 4 | 2 |
| EPSFT202070U | 2.0 | 7.0° | 6.0 | 3.47 | 50 | 4 | 2 |
| EPSST2020A0U | 2.0 | 10.0° | 6.0 | 4.11 | 50 | 6 | 2 |
| EPSST2020A5U | 2.0 | 15.0° | 6.0 | 5.22 | 50 | 6 | 2 |
EPSST2
d
L1
L
D
d Tolerance Ø 0 ~ 0.05
Cutting conditions : Table 039
( 建議切削參數表 )
