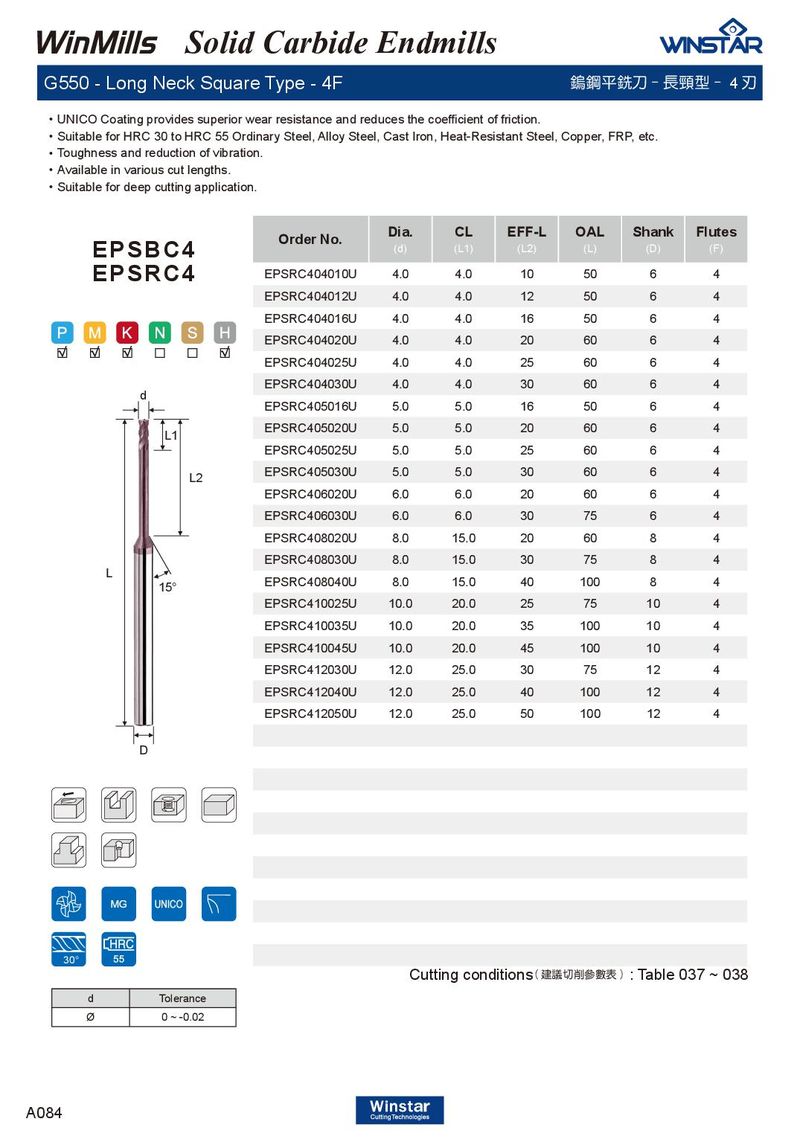

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSRC404010U | 4.0 | 4.0 | 10 | 50 | 6 | 4 |
| EPSRC404012U | 4.0 | 4.0 | 12 | 50 | 6 | 4 |
| EPSRC404016U | 4.0 | 4.0 | 16 | 50 | 6 | 4 |
| EPSRC404020U | 4.0 | 4.0 | 20 | 60 | 6 | 4 |
| EPSRC404025U | 4.0 | 4.0 | 25 | 60 | 6 | 4 |
| EPSRC404030U | 4.0 | 4.0 | 30 | 60 | 6 | 4 |
| EPSRC405016U | 5.0 | 5.0 | 16 | 50 | 6 | 4 |
| EPSRC405020U | 5.0 | 5.0 | 20 | 60 | 6 | 4 |
| EPSRC405025U | 5.0 | 5.0 | 25 | 60 | 6 | 4 |
| EPSRC405030U | 5.0 | 5.0 | 30 | 60 | 6 | 4 |
| EPSRC406020U | 6.0 | 6.0 | 20 | 60 | 6 | 4 |
| EPSRC406030U | 6.0 | 6.0 | 30 | 75 | 6 | 4 |
| EPSRC408020U | 8.0 | 15.0 | 20 | 60 | 8 | 4 |
| EPSRC408030U | 8.0 | 15.0 | 30 | 75 | 8 | 4 |
| EPSRC408040U | 8.0 | 15.0 | 40 | 100 | 8 | 4 |
| EPSRC410025U | 10.0 | 20.0 | 25 | 75 | 10 | 4 |
| EPSRC410035U | 10.0 | 20.0 | 35 | 100 | 10 | 4 |
| EPSRC410045U | 10.0 | 20.0 | 45 | 100 | 10 | 4 |
| EPSRC412030U | 12.0 | 25.0 | 30 | 75 | 12 | 4 |
| EPSRC412040U | 12.0 | 25.0 | 40 | 100 | 12 | 4 |
| EPSRC412050U | 12.0 | 25.0 | 50 | 100 | 12 | 4 |
EPSRC4
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 037 ~ 038
( 建議切削參數表 )
