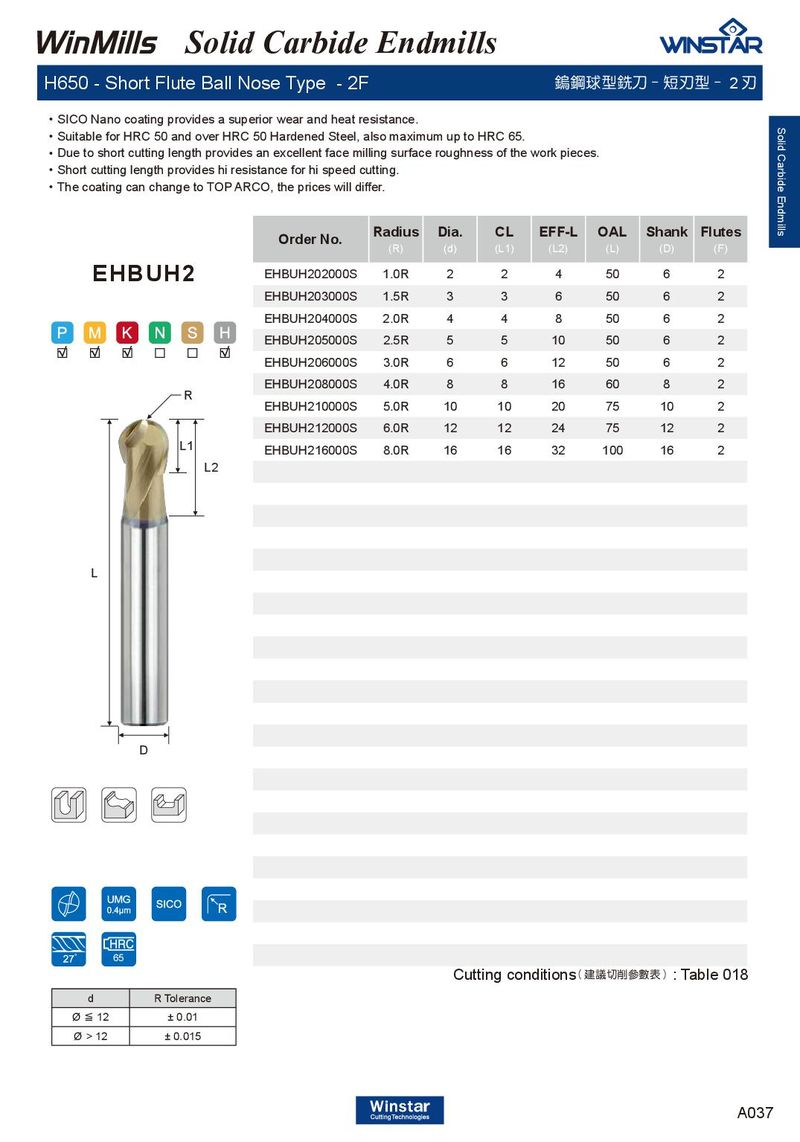

H650 - Short Flute Ball Nose Type - 2F 鎢鋼球型銑刀 - 短刃型 - 2 刃
．SICO Nano coating provides a superior wear and heat resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Due to short cutting length provides an excellent face milling surface roughness of the work pieces. ．Short cutting length provides hi resistance for hi speed cutting. ．The coating can change to TOP ARCO, the prices will differ.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHBUH202000S | 1.0R | 2 | 2 | 4 | 50 | 6 | 2 |
| EHBUH203000S | 1.5R | 3 | 3 | 6 | 50 | 6 | 2 |
| EHBUH204000S | 2.0R | 4 | 4 | 8 | 50 | 6 | 2 |
| EHBUH205000S | 2.5R | 5 | 5 | 10 | 50 | 6 | 2 |
| EHBUH206000S | 3.0R | 6 | 6 | 12 | 50 | 6 | 2 |
| EHBUH208000S | 4.0R | 8 | 8 | 16 | 60 | 8 | 2 |
| EHBUH210000S | 5.0R | 10 | 10 | 20 | 75 | 10 | 2 |
| EHBUH212000S | 6.0R | 12 | 12 | 24 | 75 | 12 | 2 |
| EHBUH216000S | 8.0R | 16 | 16 | 32 | 100 | 16 | 2 |
EHBUH2
R
L2
L
D
65
Cutting conditions : Table 018
( 建議切削參數表 )
| d R Tolerance |
| Ø≦12 ± 0.01 |
| Ø > 12 ± 0.015 |
