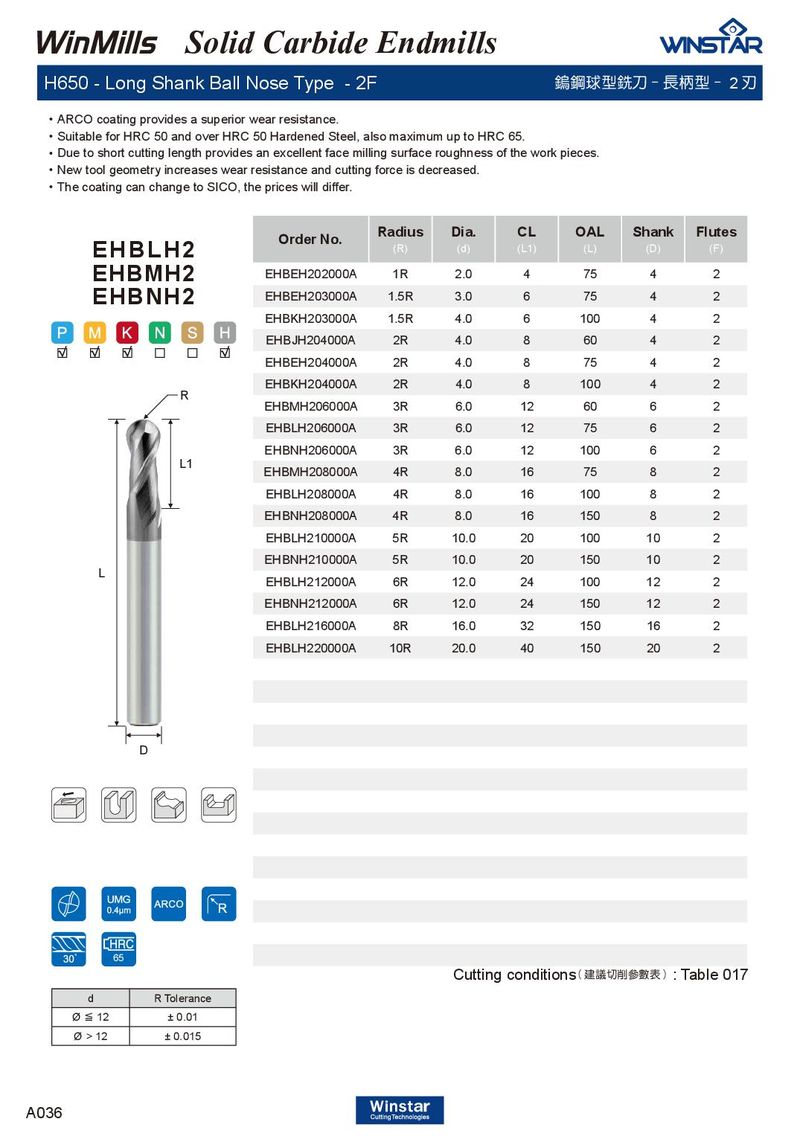

H650 - Long Shank Ball Nose Type - 2F 鎢鋼球型銑刀 - 長柄型 - 2 刃
．ARCO coating provides a superior wear resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Due to short cutting length provides an excellent face milling surface roughness of the work pieces. ．New tool geometry increases wear resistance and cutting force is decreased. ．The coating can change to SICO, the prices will differ.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHBEH202000A | 1R | 2.0 | 4 | 75 | 4 | 2 |
| EHBEH203000A | 1.5R | 3.0 | 6 | 75 | 4 | 2 |
| EHBKH203000A | 1.5R | 4.0 | 6 | 100 | 4 | 2 |
| EHBJH204000A | 2R | 4.0 | 8 | 60 | 4 | 2 |
| EHBEH204000A | 2R | 4.0 | 8 | 75 | 4 | 2 |
| EHBKH204000A | 2R | 4.0 | 8 | 100 | 4 | 2 |
| EHBMH206000A | 3R | 6.0 | 12 | 60 | 6 | 2 |
| EHBLH206000A | 3R | 6.0 | 12 | 75 | 6 | 2 |
| EHBNH206000A | 3R | 6.0 | 12 | 100 | 6 | 2 |
| EHBMH208000A | 4R | 8.0 | 16 | 75 | 8 | 2 |
| EHBLH208000A | 4R | 8.0 | 16 | 100 | 8 | 2 |
| EHBNH208000A | 4R | 8.0 | 16 | 150 | 8 | 2 |
| EHBLH210000A | 5R | 10.0 | 20 | 100 | 10 | 2 |
| EHBNH210000A | 5R | 10.0 | 20 | 150 | 10 | 2 |
| EHBLH212000A | 6R | 12.0 | 24 | 100 | 12 | 2 |
| EHBNH212000A | 6R | 12.0 | 24 | 150 | 12 | 2 |
| EHBLH216000A | 8R | 16.0 | 32 | 150 | 16 | 2 |
| EHBLH220000A | 10R | 20.0 | 40 | 150 | 20 | 2 |
EHBMH2
EHBNH2
R
L1
L
D
65
Cutting conditions : Table 017
( 建議切削參數表 )
| d R Tolerance |
| Ø≦12 ± 0.01 |
| Ø > 12 ± 0.015 |
