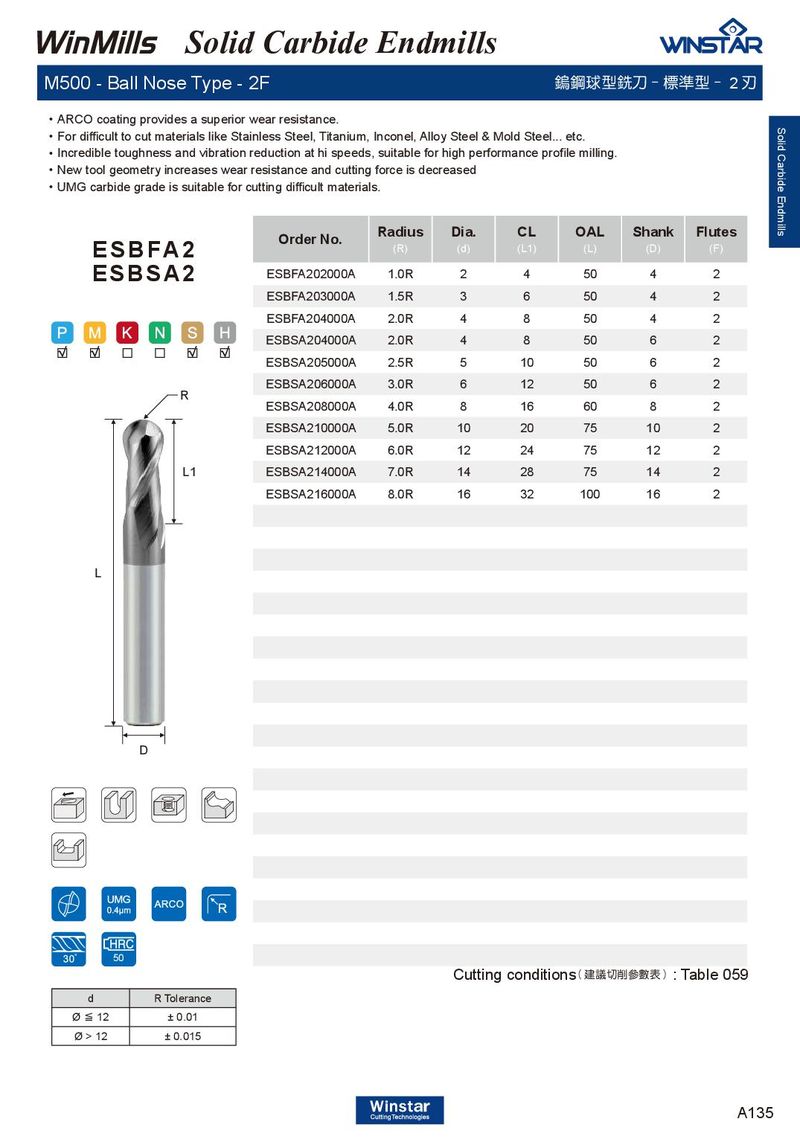

M500 - Ball Nose Type - 2F 鎢鋼球型銑刀 - 標準型 - 2 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．Incredible toughness and vibration reduction at hi speeds, suitable for high performance profile milling. ．New tool geometry increases wear resistance and cutting force is decreased ．UMG carbide grade is suitable for cutting difficult materials.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESBFA202000A | 1.0R | 2 | 4 | 50 | 4 | 2 |
| ESBFA203000A | 1.5R | 3 | 6 | 50 | 4 | 2 |
| ESBFA204000A | 2.0R | 4 | 8 | 50 | 4 | 2 |
| ESBSA204000A | 2.0R | 4 | 8 | 50 | 6 | 2 |
| ESBSA205000A | 2.5R | 5 | 10 | 50 | 6 | 2 |
| ESBSA206000A | 3.0R | 6 | 12 | 50 | 6 | 2 |
| ESBSA208000A | 4.0R | 8 | 16 | 60 | 8 | 2 |
| ESBSA210000A | 5.0R | 10 | 20 | 75 | 10 | 2 |
| ESBSA212000A | 6.0R | 12 | 24 | 75 | 12 | 2 |
| ESBSA214000A | 7.0R | 14 | 28 | 75 | 14 | 2 |
| ESBSA216000A | 8.0R | 16 | 32 | 100 | 16 | 2 |
ESBSA2
R
L
D
50
Cutting conditions : Table 059
( 建議切削參數表 )
| d R Tolerance |
| Ø≦12 ± 0.01 |
| Ø > 12 ± 0.015 |
