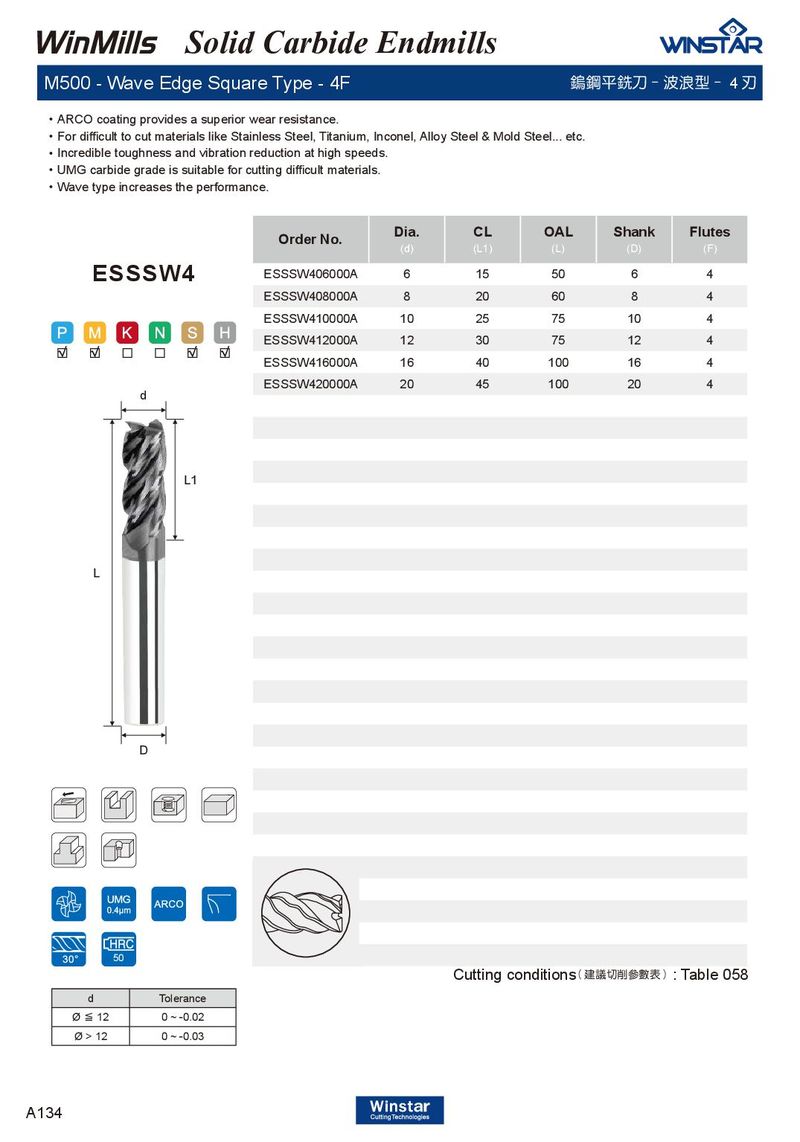

M500 - Wave Edge Square Type - 4F 鎢鋼平銑刀 - 波浪型 - 4 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．Incredible toughness and vibration reduction at high speeds. ．UMG carbide grade is suitable for cutting difficult materials. ．Wave type increases the performance.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESSSW406000A | 6 | 15 | 50 | 6 | 4 |
| ESSSW408000A | 8 | 20 | 60 | 8 | 4 |
| ESSSW410000A | 10 | 25 | 75 | 10 | 4 |
| ESSSW412000A | 12 | 30 | 75 | 12 | 4 |
| ESSSW416000A | 16 | 40 | 100 | 16 | 4 |
| ESSSW420000A | 20 | 45 | 100 | 20 | 4 |
ESSSW4
d
L1
L
D
50
Cutting conditions : Table 058
( 建議切削參數表 )
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
