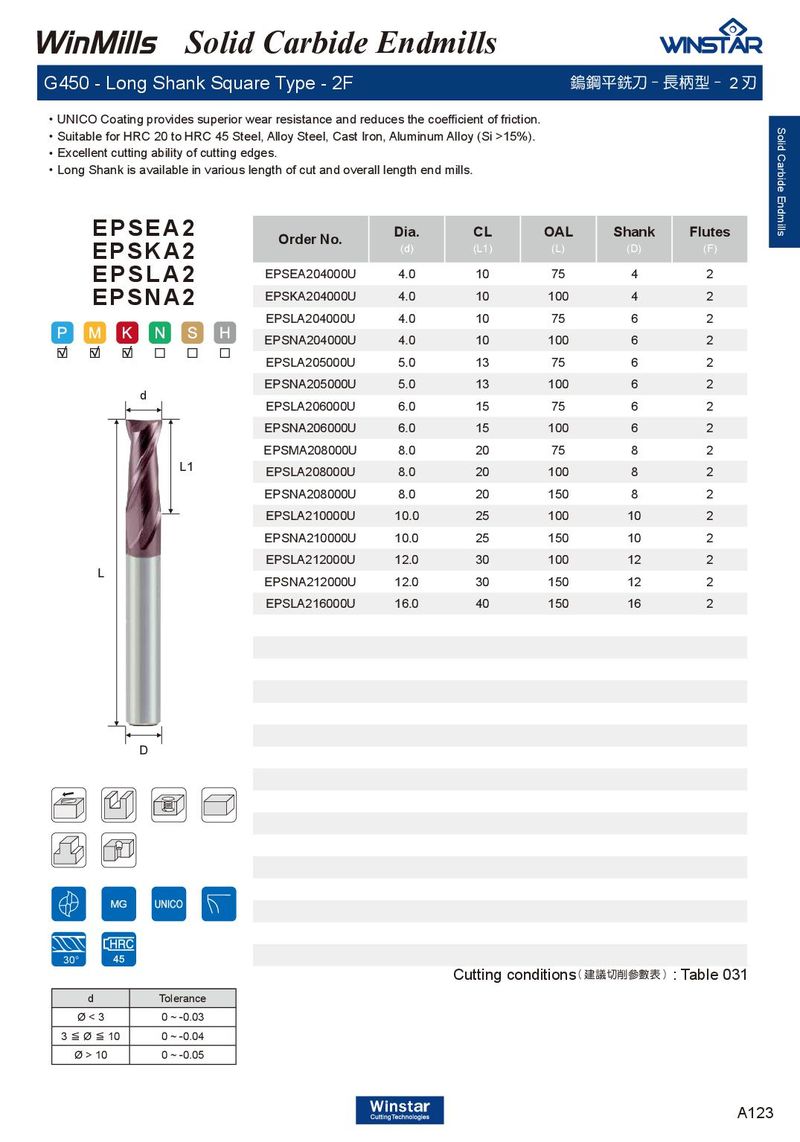

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%). ．Excellent cutting ability of cutting edges. ．Long Shank is available in various length of cut and overall length end mills.
EPSEA2
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSEA204000U | 4.0 | 10 | 75 | 4 | 2 |
| EPSKA204000U | 4.0 | 10 | 100 | 4 | 2 |
| EPSLA204000U | 4.0 | 10 | 75 | 6 | 2 |
| EPSNA204000U | 4.0 | 10 | 100 | 6 | 2 |
| EPSLA205000U | 5.0 | 13 | 75 | 6 | 2 |
| EPSNA205000U | 5.0 | 13 | 100 | 6 | 2 |
| EPSLA206000U | 6.0 | 15 | 75 | 6 | 2 |
| EPSNA206000U | 6.0 | 15 | 100 | 6 | 2 |
| EPSMA208000U | 8.0 | 20 | 75 | 8 | 2 |
| EPSLA208000U | 8.0 | 20 | 100 | 8 | 2 |
| EPSNA208000U | 8.0 | 20 | 150 | 8 | 2 |
| EPSLA210000U | 10.0 | 25 | 100 | 10 | 2 |
| EPSNA210000U | 10.0 | 25 | 150 | 10 | 2 |
| EPSLA212000U | 12.0 | 30 | 100 | 12 | 2 |
| EPSNA212000U | 12.0 | 30 | 150 | 12 | 2 |
| EPSLA216000U | 16.0 | 40 | 150 | 16 | 2 |
EPSLA2
EPSNA2
d
L
D
30°
Cutting conditions : Table 031
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
