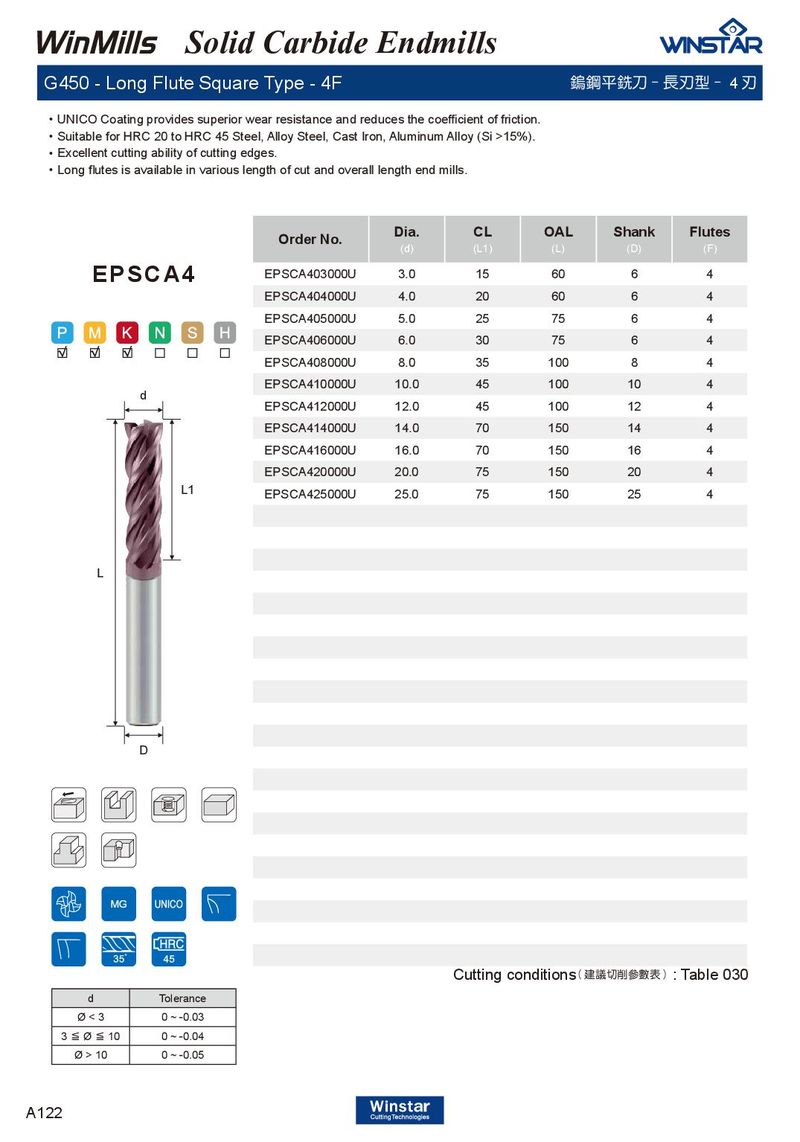

G450 - Long Flute Square Type - 4F 鎢鋼平銑刀 - 長刃型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%). ．Excellent cutting ability of cutting edges. ．Long flutes is available in various length of cut and overall length end mills.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSCA403000U | 3.0 | 15 | 60 | 6 | 4 |
| EPSCA404000U | 4.0 | 20 | 60 | 6 | 4 |
| EPSCA405000U | 5.0 | 25 | 75 | 6 | 4 |
| EPSCA406000U | 6.0 | 30 | 75 | 6 | 4 |
| EPSCA408000U | 8.0 | 35 | 100 | 8 | 4 |
| EPSCA410000U | 10.0 | 45 | 100 | 10 | 4 |
| EPSCA412000U | 12.0 | 45 | 100 | 12 | 4 |
| EPSCA414000U | 14.0 | 70 | 150 | 14 | 4 |
| EPSCA416000U | 16.0 | 70 | 150 | 16 | 4 |
| EPSCA420000U | 20.0 | 75 | 150 | 20 | 4 |
| EPSCA425000U | 25.0 | 75 | 150 | 25 | 4 |
EPSCA4
d
L
D
Cutting conditions : Table 030
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
