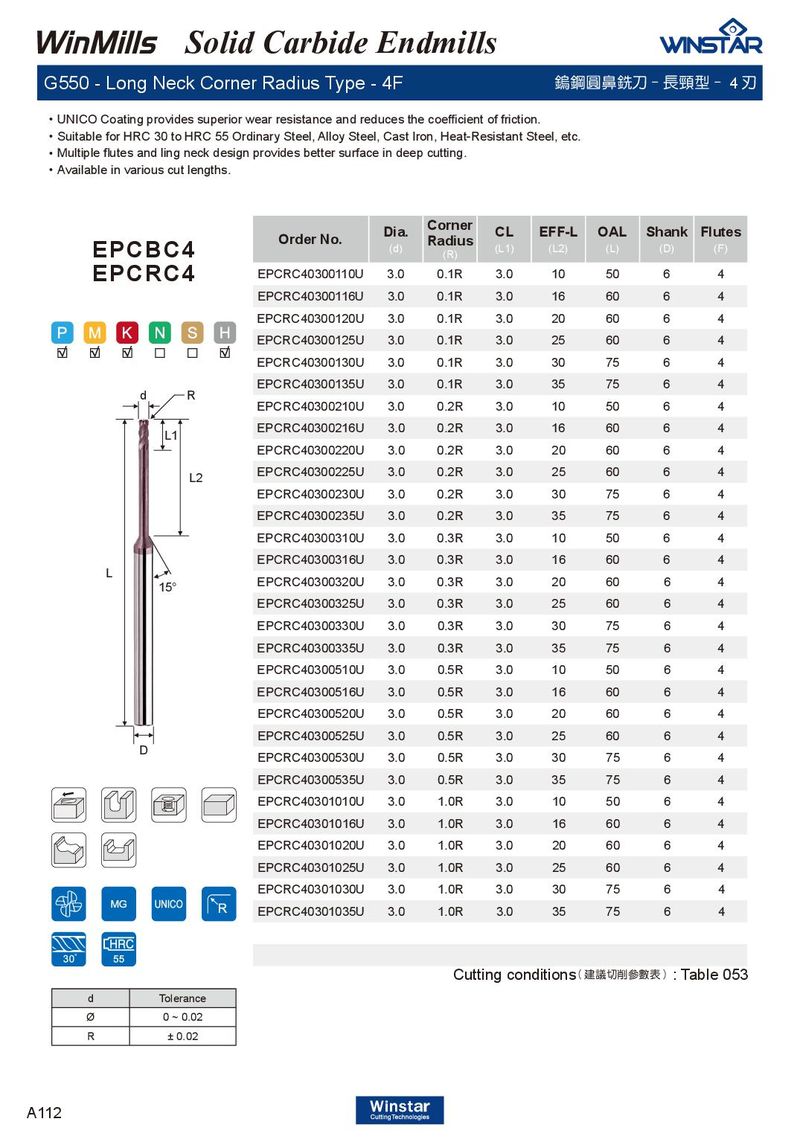

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Multiple flutes and ling neck design provides better surface in deep cutting. ．Available in various cut lengths.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPCRC40300110U | 3.0 | 0.1R | 3.0 | 10 | 50 | 6 | 4 |
| EPCRC40300116U | 3.0 | 0.1R | 3.0 | 16 | 60 | 6 | 4 |
| EPCRC40300120U | 3.0 | 0.1R | 3.0 | 20 | 60 | 6 | 4 |
| EPCRC40300125U | 3.0 | 0.1R | 3.0 | 25 | 60 | 6 | 4 |
| EPCRC40300130U | 3.0 | 0.1R | 3.0 | 30 | 75 | 6 | 4 |
| EPCRC40300135U | 3.0 | 0.1R | 3.0 | 35 | 75 | 6 | 4 |
| EPCRC40300210U | 3.0 | 0.2R | 3.0 | 10 | 50 | 6 | 4 |
| EPCRC40300216U | 3.0 | 0.2R | 3.0 | 16 | 60 | 6 | 4 |
| EPCRC40300220U | 3.0 | 0.2R | 3.0 | 20 | 60 | 6 | 4 |
| EPCRC40300225U | 3.0 | 0.2R | 3.0 | 25 | 60 | 6 | 4 |
| EPCRC40300230U | 3.0 | 0.2R | 3.0 | 30 | 75 | 6 | 4 |
| EPCRC40300235U | 3.0 | 0.2R | 3.0 | 35 | 75 | 6 | 4 |
| EPCRC40300310U | 3.0 | 0.3R | 3.0 | 10 | 50 | 6 | 4 |
| EPCRC40300316U | 3.0 | 0.3R | 3.0 | 16 | 60 | 6 | 4 |
| EPCRC40300320U | 3.0 | 0.3R | 3.0 | 20 | 60 | 6 | 4 |
| EPCRC40300325U | 3.0 | 0.3R | 3.0 | 25 | 60 | 6 | 4 |
| EPCRC40300330U | 3.0 | 0.3R | 3.0 | 30 | 75 | 6 | 4 |
| EPCRC40300335U | 3.0 | 0.3R | 3.0 | 35 | 75 | 6 | 4 |
| EPCRC40300510U | 3.0 | 0.5R | 3.0 | 10 | 50 | 6 | 4 |
| EPCRC40300516U | 3.0 | 0.5R | 3.0 | 16 | 60 | 6 | 4 |
| EPCRC40300520U | 3.0 | 0.5R | 3.0 | 20 | 60 | 6 | 4 |
| EPCRC40300525U | 3.0 | 0.5R | 3.0 | 25 | 60 | 6 | 4 |
| EPCRC40300530U | 3.0 | 0.5R | 3.0 | 30 | 75 | 6 | 4 |
| EPCRC40300535U | 3.0 | 0.5R | 3.0 | 35 | 75 | 6 | 4 |
| EPCRC40301010U | 3.0 | 1.0R | 3.0 | 10 | 50 | 6 | 4 |
| EPCRC40301016U | 3.0 | 1.0R | 3.0 | 16 | 60 | 6 | 4 |
| EPCRC40301020U | 3.0 | 1.0R | 3.0 | 20 | 60 | 6 | 4 |
| EPCRC40301025U | 3.0 | 1.0R | 3.0 | 25 | 60 | 6 | 4 |
| EPCRC40301030U | 3.0 | 1.0R | 3.0 | 30 | 75 | 6 | 4 |
| EPCRC40301035U | 3.0 | 1.0R | 3.0 | 35 | 75 | 6 | 4 |
EPCRC4
d R L1
L
D
Cutting conditions : Table 053
( 建議切削參數表 )
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
