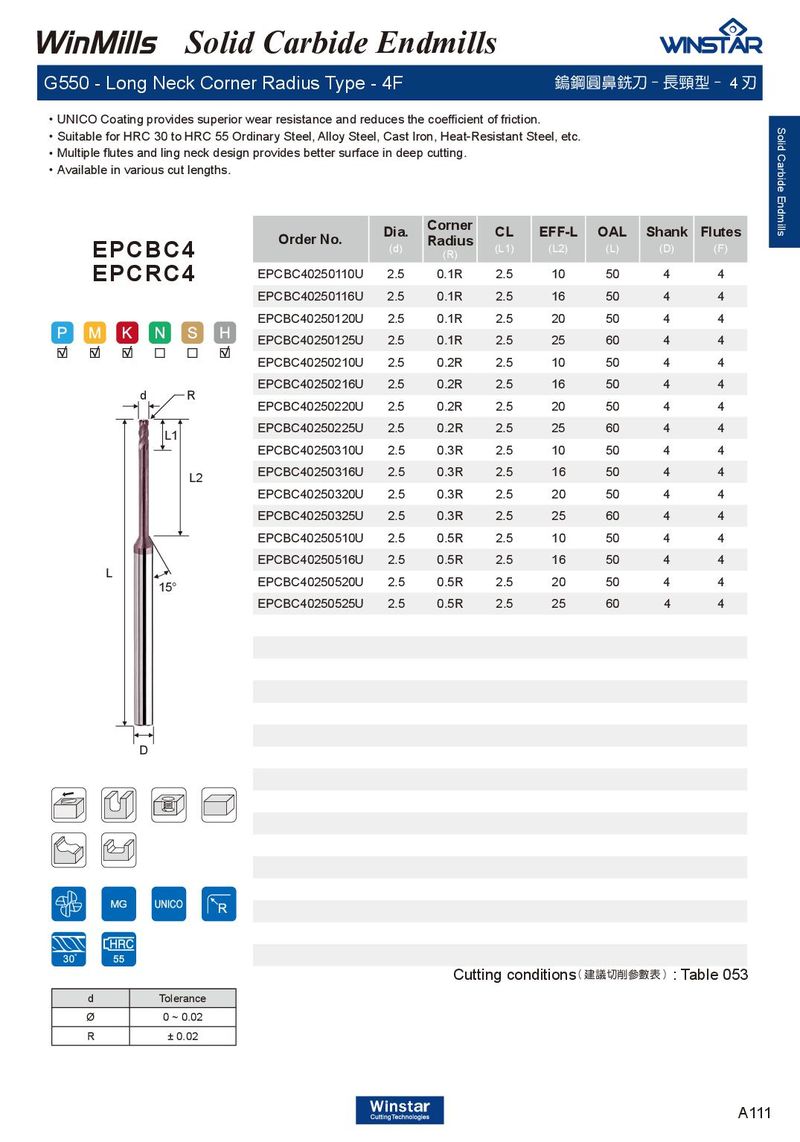

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Multiple flutes and ling neck design provides better surface in deep cutting. ．Available in various cut lengths.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPCBC40250110U | 2.5 | 0.1R | 2.5 | 10 | 50 | 4 | 4 |
| EPCBC40250116U | 2.5 | 0.1R | 2.5 | 16 | 50 | 4 | 4 |
| EPCBC40250120U | 2.5 | 0.1R | 2.5 | 20 | 50 | 4 | 4 |
| EPCBC40250125U | 2.5 | 0.1R | 2.5 | 25 | 60 | 4 | 4 |
| EPCBC40250210U | 2.5 | 0.2R | 2.5 | 10 | 50 | 4 | 4 |
| EPCBC40250216U | 2.5 | 0.2R | 2.5 | 16 | 50 | 4 | 4 |
| EPCBC40250220U | 2.5 | 0.2R | 2.5 | 20 | 50 | 4 | 4 |
| EPCBC40250225U | 2.5 | 0.2R | 2.5 | 25 | 60 | 4 | 4 |
| EPCBC40250310U | 2.5 | 0.3R | 2.5 | 10 | 50 | 4 | 4 |
| EPCBC40250316U | 2.5 | 0.3R | 2.5 | 16 | 50 | 4 | 4 |
| EPCBC40250320U | 2.5 | 0.3R | 2.5 | 20 | 50 | 4 | 4 |
| EPCBC40250325U | 2.5 | 0.3R | 2.5 | 25 | 60 | 4 | 4 |
| EPCBC40250510U | 2.5 | 0.5R | 2.5 | 10 | 50 | 4 | 4 |
| EPCBC40250516U | 2.5 | 0.5R | 2.5 | 16 | 50 | 4 | 4 |
| EPCBC40250520U | 2.5 | 0.5R | 2.5 | 20 | 50 | 4 | 4 |
| EPCBC40250525U | 2.5 | 0.5R | 2.5 | 25 | 60 | 4 | 4 |
EPCRC4
d R L1
L
D
Cutting conditions : Table 053
( 建議切削參數表 )
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
