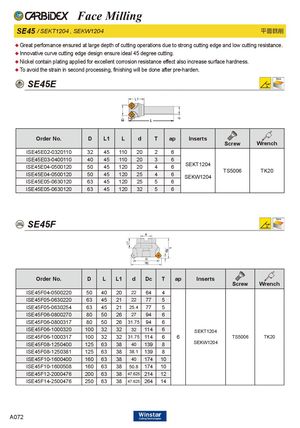

SE45 / SEKT1204 , SEKW1204 平面銑削
- Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
- Innovative curve cutting edge design ensure ideal 45 degree cutting.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. SE45E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ISE45E02-0320110 | 32 | 45 | 110 | 20 | 2 | 6 | |||
| ISE45E03-0400110 | 40 | 45 | 110 | 20 | 3 | 6 | |||
| ISE45E04-0500120 | 50 | 45 | 120 | 20 | 4 | 6 | SEKT1204 | TS5006 | TK20 |
| ISE45E04-0500120 | 50 | 45 | 120 | 25 | 4 | 6 | SEKW1204 | ||
| ISE45E05-0630120 | 63 | 45 | 120 | 25 | 5 | 6 | |||
| ISE45E05-0630120 | 63 | 45 | 120 | 32 | 5 | 6 |
SE45F
| Order No. | D | L | L1 | d | Dc | T | ap | Inserts | Screw | Wrench |
| ISE45F04-0500220 | 50 | 40 | 20 | 22 | 64 | 4 | ||||
| ISE45F05-0630220 | 63 | 45 | 21 | 22 | 77 | 5 | ||||
| ISE45F05-0630254 | 63 | 45 | 21 | 25.4 | 77 | 5 | ||||
| ISE45F06-0800270 | 80 | 50 | 26 | 27 | 94 | 6 | ||||
| ISE45F06-0800317 | 80 | 50 | 26 | 31.75 | 94 | 6 | ||||
| ISE45F06-1000320 | 100 | 32 | 32 | 32 | 114 | 6 | SEKT1204 | |||
| ISE45F06-1000317 | 100 | 32 | 32 | 31.75 | 114 | 6 | 6 | TS5006 | TK20 | |
| ISE45F08-1250400 | 125 | 63 | 38 | 40 | 139 | 8 | SEKW1204 | |||
| ISE45F08-1250381 | 125 | 63 | 38 | 38.1 | 139 | 8 | ||||
| ISE45F10-1600400 | 160 | 63 | 38 | 40 | 174 | 10 | ||||
| ISE45F10-1600508 | 160 | 63 | 38 | 50.8 | 174 | 10 | ||||
| ISE45F12-2000476 | 200 | 63 | 38 | 47.625 | 214 | 12 | ||||
| ISE45F14-2500476 | 250 | 63 | 38 | 47.625 | 264 | 14 |
