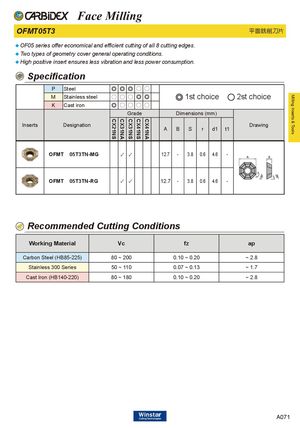

OFMT05T3 平面銑削刀片
♦OF05 series offer economical and efficient cutting of all 8 cutting edges. ♦Two types of geometry cover general operating conditions. ♦High positive insert ensures less vibration and less power consumption.
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ||||||||
| Gra | de | Dim | ensio | ns( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing | |
| OFMT | 05T3TN-MG | ✓ | ✓ | 12.7 | - | 3.8 | 0.6 | 4.6 | - | |||||
| OFMT | 05T3TN-RG | ✓ | ✓ | 12.7 | - | 3.8 | 0.6 | 4.6 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.10 ~ 0.20 | ~ 2.8 |
| Stainless 300 Series | 50 ~ 110 | 0.07 ~ 0.13 | ~ 1.7 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.10 ~ 0.20 | ~ 2.8 |
