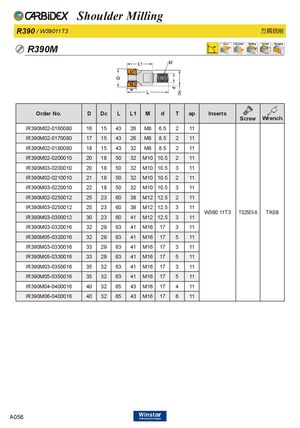

R390M
ap
| Order No. | D | Dc | L | L1 | M | d | T | ap | Inserts | Screw | Wrench |
| IR390M02-0160080 | 16 | 15 | 43 | 26 | M8 | 6.5 | 2 | 11 | |||
| IR390M02-0170080 | 17 | 15 | 43 | 26 | M8 | 8.5 | 2 | 11 | |||
| IR390M02-0180080 | 18 | 15 | 43 | 32 | M8 | 8.5 | 2 | 11 | |||
| IR390M02-0200010 | 20 | 18 | 50 | 32 | M10 | 10.5 | 2 | 11 | |||
| IR390M03-0200010 | 20 | 18 | 50 | 32 | M10 | 10.5 | 3 | 11 | |||
| IR390M02-0210010 | 21 | 18 | 50 | 32 | M10 | 10.5 | 2 | 11 | |||
| IR390M03-0220010 | 22 | 18 | 50 | 32 | M10 | 10.5 | 3 | 11 | |||
| IR390M02-0250012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 2 | 11 | |||
| IR390M03-0250012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 3 | 11 | W390 11T3 | TS2038 | TK08 |
| IR390M03-0300012 | 30 | 23 | 60 | 41 | M12 | 12.5 | 3 | 11 | 5- | ||
| IR390M03-0320016 | 32 | 29 | 63 | 41 | M16 | 17 | 3 | 11 | |||
| IR390M05-0320016 | 32 | 29 | 63 | 41 | M16 | 17 | 5 | 11 | |||
| IR390M03-0330016 | 33 | 29 | 63 | 41 | M16 | 17 | 3 | 11 | |||
| IR390M05-0330016 | 33 | 29 | 63 | 41 | M16 | 17 | 5 | 11 | |||
| IR390M03-0350016 | 35 | 32 | 63 | 41 | M16 | 17 | 3 | 11 | |||
| IR390M05-0350016 | 35 | 32 | 63 | 41 | M16 | 17 | 5 | 11 | |||
| IR390M04-0400016 | 40 | 32 | 65 | 43 | M16 | 17 | 4 | 11 | |||
| IR390M06-0400016 | 40 | 32 | 65 | 43 | M16 | 17 | 6 | 11 |
