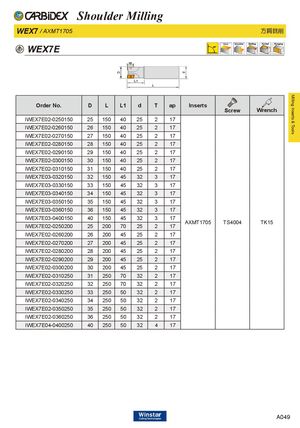

WEX7E
ap
| Order No. | D | L | L1 | d | T | ap | Inserts | Screw | Wrench |
| IWEX7E02-0250150 | 25 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0260150 | 26 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0270150 | 27 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0280150 | 28 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0290150 | 29 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0300150 | 30 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E02-0310150 | 31 | 150 | 40 | 25 | 2 | 17 | |||
| IWEX7E03-0320150 | 32 | 150 | 45 | 32 | 3 | 17 | |||
| IWEX7E03-0330150 | 33 | 150 | 45 | 32 | 3 | 17 | |||
| IWEX7E03-0340150 | 34 | 150 | 45 | 32 | 3 | 17 | |||
| IWEX7E03-0350150 | 35 | 150 | 45 | 32 | 3 | 17 | |||
| IWEX7E03-0360150 | 36 | 150 | 45 | 32 | 3 | 17 | |||
| IWEX7E03-0400150 | 40 | 150 | 45 | 32 | 3 | 17 | AXMT1705 | TS4004 | TK15 |
| IWEX7E02-0250200 | 25 | 200 | 70 | 25 | 2 | 17 | |||
| IWEX7E02-0260200 | 26 | 200 | 45 | 25 | 2 | 17 | |||
| IWEX7E02-0270200 | 27 | 200 | 45 | 25 | 2 | 17 | |||
| IWEX7E02-0280200 | 28 | 200 | 45 | 25 | 2 | 17 | |||
| IWEX7E02-0290200 | 29 | 200 | 45 | 25 | 2 | 17 | |||
| IWEX7E02-0300200 | 30 | 200 | 45 | 25 | 2 | 17 | |||
| IWEX7E02-0310250 | 31 | 250 | 70 | 32 | 2 | 17 | |||
| IWEX7E02-0320250 | 32 | 250 | 70 | 32 | 2 | 17 | |||
| IWEX7E02-0330250 | 33 | 250 | 50 | 32 | 2 | 17 | |||
| IWEX7E02-0340250 | 34 | 250 | 50 | 32 | 2 | 17 | |||
| IWEX7E02-0350250 | 35 | 250 | 50 | 32 | 2 | 17 | |||
| IWEX7E02-0360250 | 36 | 250 | 50 | 32 | 2 | 17 | |||
| IWEX7E04-0400250 | 40 | 250 | 50 | 32 | 4 | 17 |
