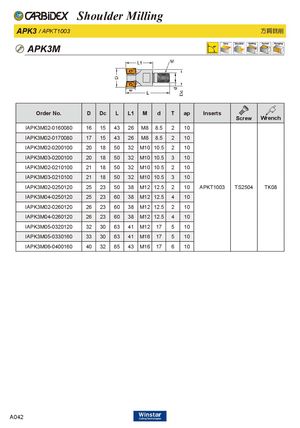

APK3M
ap
| Order No. | D | Dc | L | L1 | M | d | T | ap | Inserts | Screw | Wrench |
| IAPK3M02-0160080 | 16 | 15 | 43 | 26 | M8 | 8.5 | 2 | 10 | |||
| IAPK3M02-0170080 | 17 | 15 | 43 | 26 | M8 | 8.5 | 2 | 10 | |||
| IAPK3M02-0200100 | 20 | 18 | 50 | 32 | M10 | 10.5 | 2 | 10 | |||
| IAPK3M03-0200100 | 20 | 18 | 50 | 32 | M10 | 10.5 | 3 | 10 | |||
| IAPK3M02-0210100 | 21 | 18 | 50 | 32 | M10 | 10.5 | 2 | 10 | |||
| IAPK3M03-0210100 | 21 | 18 | 50 | 32 | M10 | 10.5 | 3 | 10 | |||
| IAPK3M02-0250120 | 25 | 23 | 50 | 38 | M12 | 12.5 | 2 | 10 | APKT1003 | TS2504 | TK08 |
| IAPK3M04-0250120 | 25 | 23 | 60 | 38 | M12 | 12.5 | 4 | 10 | |||
| IAPK3M02-0260120 | 26 | 23 | 60 | 38 | M12 | 12.5 | 2 | 10 | |||
| IAPK3M04-0260120 | 26 | 23 | 60 | 38 | M12 | 12.5 | 4 | 10 | |||
| IAPK3M05-0320120 | 32 | 30 | 63 | 41 | M12 | 17 | 5 | 10 | |||
| IAPK3M05-0330160 | 33 | 30 | 63 | 41 | M16 | 17 | 5 | 10 | |||
| IAPK3M06-0400160 | 40 | 32 | 65 | 43 | M16 | 17 | 6 | 10 |
