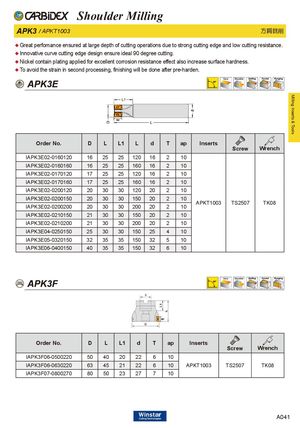

Каталог Carbidex сменные пластины 2020 - страница 43
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
- Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
- Innovative curve cutting edge design ensure ideal 90 degree cutting.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. APK3E
ap
| Order No. | D | L | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IAPK3E02-0160120 | 16 | 25 | 25 | 120 | 16 | 2 | 10 | |||
| IAPK3E02-0160160 | 16 | 25 | 25 | 160 | 16 | 2 | 10 | |||
| IAPK3E02-0170120 | 17 | 25 | 25 | 120 | 16 | 2 | 10 | |||
| IAPK3E02-0170160 | 17 | 25 | 25 | 160 | 16 | 2 | 10 | |||
| IAPK3E02-0200120 | 20 | 30 | 30 | 120 | 20 | 2 | 10 | |||
| IAPK3E02-0200150 | 20 | 30 | 30 | 150 | 20 | 2 | 10 | APKT1003 | TS2507 | TK08 |
| IAPK3E02-0200200 | 20 | 30 | 30 | 200 | 20 | 2 | 10 | |||
| IAPK3E02-0210150 | 21 | 30 | 30 | 150 | 20 | 2 | 10 | |||
| IAPK3E02-0210200 | 21 | 30 | 30 | 200 | 20 | 2 | 10 | |||
| IAPK3E04-0250150 | 25 | 30 | 30 | 150 | 25 | 4 | 10 | |||
| IAPK3E05-0320150 | 32 | 35 | 35 | 150 | 32 | 5 | 10 | |||
| IAPK3E06-0400150 | 40 | 35 | 35 | 150 | 32 | 6 | 10 |
APK3F
ap
| Order No. | D | L | L1 | d | T | ap | Inserts | Screw | Wrench |
| IAPK3F06-0500220 | 50 | 40 | 20 | 22 | 6 | 10 | |||
| IAPK3F06-0630220 | 63 | 45 | 21 | 22 | 6 | 10 | APKT1003 | TS2507 | TK08 |
| IAPK3F07-0800270 | 80 | 50 | 23 | 27 | 7 | 10 |
