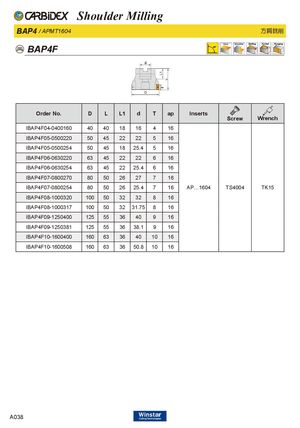

Каталог Carbidex сменные пластины 2020 - страница 40
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
BAP4F
ap
| Order No. | D | L | L1 | d | T | ap | Inserts | Screw | Wrench |
| IBAP4F04-0400160 | 40 | 40 | 18 | 16 | 4 | 16 | |||
| IBAP4F05-0500220 | 50 | 45 | 22 | 22 | 5 | 16 | |||
