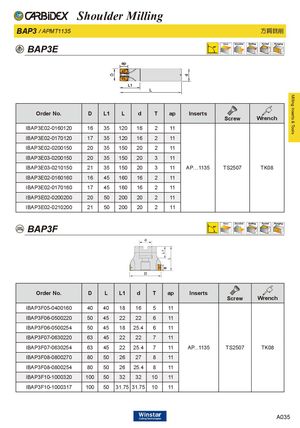

BAP3E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IBAP3E02-0160120 | 16 | 35 | 120 | 16 | 2 | 11 | |||
| IBAP3E02-0170120 | 17 | 35 | 120 | 16 | 2 | 11 | |||
| IBAP3E02-0200150 | 20 | 35 | 150 | 20 | 2 | 11 | |||
| IBAP3E03-0200150 | 20 | 35 | 150 | 20 | 3 | 11 | |||
| IBAP3E03-0210150 | 21 | 35 | 150 | 20 | 3 | 11 | AP…1135 | TS2507 | TK08 |
| IBAP3E02-0160160 | 16 | 45 | 160 | 16 | 2 | 11 | |||
| IBAP3E02-0170160 | 17 | 45 | 160 | 16 | 2 | 11 | |||
| IBAP3E02-0200200 | 20 | 50 | 200 | 20 | 2 | 11 | |||
| IBAP3E02-0210200 | 21 | 50 | 200 | 20 | 2 | 11 |
BAP3F
ap
| Order No. | D | L | L1 | d | T | ap | Inserts | Screw | Wrench |
| IBAP3F05-0400160 | 40 | 40 | 18 | 16 | 5 | 11 | |||
| IBAP3F06-0500220 | 50 | 45 | 22 | 22 | 6 | 11 | |||
| IBAP3F06-0500254 | 50 | 45 | 18 | 25.4 | 6 | 11 | |||
| IBAP3F07-0630220 | 63 | 45 | 22 | 22 | 7 | 11 | |||
| IBAP3F07-0630254 | 63 | 45 | 22 | 25.4 | 7 | 11 | AP...1135 | TS2507 | TK08 |
| IBAP3F08-0800270 | 80 | 50 | 26 | 27 | 8 | 11 | |||
| IBAP3F08-0800254 | 80 | 50 | 26 | 25.4 | 8 | 11 | |||
| IBAP3F10-1000320 | 100 | 50 | 32 | 32 | 10 | 11 | |||
| IBAP3F10-1000317 | 100 | 50 | 31.75 | 31.75 | 10 | 11 |
