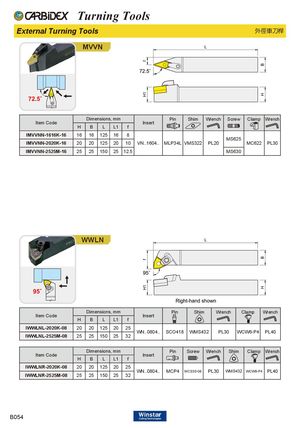

MVVN
| Dimensions, mm | | Pin | Shim | Wrench | Screw | Clamp Wrench |
| Item Code | | Insert | | | | | |
| H | B | L | L1 | f | | | |
| IMVVNN-1616K-16 | 16 16 125 16 | | | | 8 | | | |
| | | | | | | MS625 | |
| IMVVNN-2020K-16 | 20 20 125 20 10 | | | | | VN..1604.. MLP34L VMS322 PL20 | | MC622 PL30 |
| IMVVNN-2525M-16 | 25 25 150 25 12.5 | | | | | | MS630 | |
WWLN
| Dimensions, mm | | Pin | Shim | Wrench | Clamp | Wrench |
| Item Code | | Insert | | | | | |
| H | B | L | L1 | f |
| IWWLNL-2020K-08 | 20 20 125 20 25 | | | | |
| | WN..0804.. SCO418 WMS432 | PL30 | WCW6-P4 PL40 |
| IWWLNL-2525M-08 | 25 25 150 25 32 | | | |
| Dimensions, mm | | Pin | Screw | Wrench | Shim | Clamp Wrench |
| Item Code | | Insert | | | | | |
| H | B | L | L1 | f |
| IWWLNR-2020K-08 | 20 20 125 20 25 | | | | |
WN..0804.. MCP4 MCS3S-08 PL30 WMS432 WCW6-P4 PL40
IWWLNR-2525M-08 25 25 150 25 32
