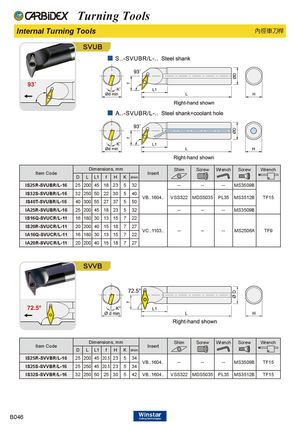

Каталог Carbidex сменные пластины 2020 - страница 160
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
SVUB
| Di | men | sion | s, m | m | Shim | Screw | Wrench | Screw | Wrench | ||||
| Item Code | Insert | ||||||||||||
| D | L | L1 | f | H | K | dmin | |||||||
| IS25R-SVUBR/L-16 | 25 | 200 | 45 | 18 | 23 | 5 | 32 | -- | -- | -- | MS3509B | ||
| IS32S-SVUBR/L-16 | 32 | 250 | 50 | 22 | 30 | 5 | 40 | VB1604 | VSS322 | MDS5035 | PL35 | MS3512B | TF15 |
| IS40T-SVUBR/L-16 | 40 | 300 | 55 | 27 | 37 | 5 | 50 | .... | |||||
| IA25R-SVUBR/L-16 | 25 | 200 | 45 | 18 | 23 | 5 | 32 | -- | -- | -- | MS3509B | ||
| IS16Q-SVUCR/L-11 | 16 | 180 | 30 | 13 | 15 | 7 | 22 | ||||||
| IS20R-SVUCR/L-11 | 20 | 200 | 40 | 15 | 18 | 7 | 27 | ||||||
| IA16Q-SVUCR/L-11 | 16 | 180 | 30 | 13 | 15 | 7 | 22 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| IA20R-SVUCR/L-11 | 20 | 200 | 40 | 15 | 18 | 7 | 27 |
SVVB
| Item Code | D | D L | ime L1 | nsion f | s, m H | m K | dmin | Insert | Shim | Screw | Wrench | Screw | Wrench |
| IS25R-SVVBR/L-16 IS25S-SVVBR/L-16 | 25 25 | 200 250 | 45 45 | 20.5 20.5 | 23 23 | 5 5 | 34 34 | VB..1604.. | -- | -- | -- | MS3509B | TF15 |
| IS32S-SVVBR/L-16 | 32 | 250 | 50 | 25 | 30 | 5 | 42 | VB..1604.. | VSS322 | MDS5035 | PL35 | MS3512B | TF15 |
