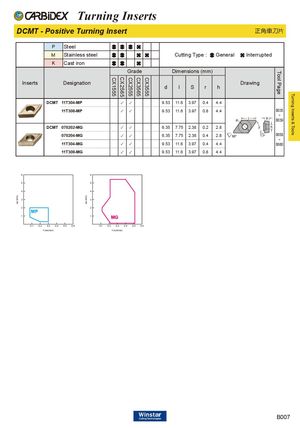

| DCMT - | Posi | tive Turning Inser | t | 正角車 | 刀片 | ||||||
| P | Steel | ||||||||||
| M | Stainless steel | Cutti | ng Typ | e : | Gen | eral | Interrupted | ||||
| K | Cast iron | ||||||||||
| C C | Grade C C C | Dimen | sions | (mm | ) | Tool | |||||
| Inserts | Designation X1555 X2565 | X2555 X3565 X3555 | d | l | S | r | h | Drawing | Page | ||
| DCMT | 11T304-MP ✓ 11T308-MP ✓ | ✓ ✓ | 9.53 9.53 | 11.6 11.6 | 3.97 3.97 | 0.4 0.8 | 4.4 4.4 | B035 ~ B039 | |||
| DCMT | 070202-MG ✓ 070204-MG ✓ | ✓ ✓ | 6.35 6.35 | 7.75 7.75 | 2.38 2.38 | 0.2 0.4 | 2.8 2.8 | B058 ~ | |||
| 11T304-MG ✓ 11T308-MG ✓ | ✓ ✓ | 9.53 9.53 | 11.6 11.6 | 3.97 3.97 | 0.4 0.8 | 4.4 4.4 | B060 | ||||
| 0.1 0.2 1 2 3 4 5 6 f ap (mm) MP | 0.3 0.4 (mm/rev) | 0.5 0.6 0.1 0.2 0.3 1 2 3 4 5 6 f (mm/rev) ap (mm) MG | 0.4 0.5 0.6 |
