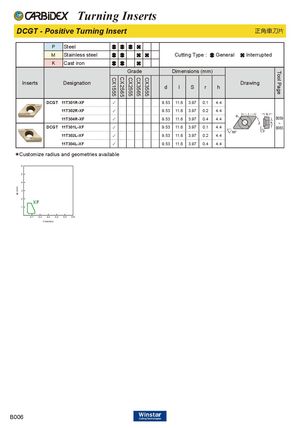

| DCGT - | Posi | tive Turning | Inse | r | t | 正角車 | 刀片 | |||||||||
| P | Steel | |||||||||||||||
| M | Stainless steel | Cutti | ng Ty | pe : | Gen | er | al Inte | rrupted | ||||||||
| K | Cast iron | |||||||||||||||
| Gr | ade | Dimen | sions | (mm | ) | To | ||||||||||
| Inserts | Designation | CX1555 | CX2565 | CX2555 | CX3565 | CX3555 | d | l | S | r | h | Drawi | ng | ol Page | ||
| DCGT | 11T301R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | |||||||||
| 11T302R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||||
| 11T304R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | B059 ~ | |||||||||
| DCGT | 11T301L-XF 11T302L-XF | ✓ ✓ | 9.53 9.53 | 11.6 11.6 | 3.97 3.97 | 0.1 0.2 | 4.4 4.4 | B063 | ||||||||
| 11T304L-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 |
*Customize radius and geometries available
6 5 4 3 2 XF 1
0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev)
