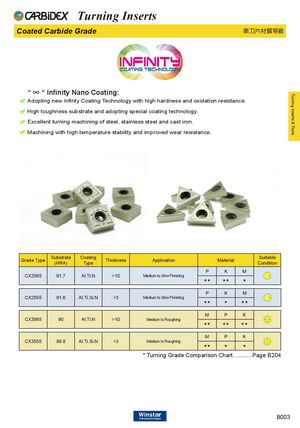

Coated Carbide Grade 車刀片材質等級
“ ∞ “ Infinity Nano Coating: Adopting new Infinty Coating Technology with high hardness and oxidation resistance. High toughness substrate and adopting special coating technology. Excellent turning machining of steel, stainless steel and cast iron. Machining with high temperature stability and improved wear resistance.
| Grade Type | Substrate (HRA) | Coating Type | Thickness | Application | Material | Suitable Condition | ||
| CX2565 | 91.7 | Al.Ti.N | >10 | Medium to Simi-Finishing | P ★★ | K ★★ | M ★ | |
| CX2555 | 91.6 | Al.Ti.Si.N | >3 | Medium to Simi-Finishing | P ★★ | K ★ | M ★★ | |
| CX3565 | 90 | Al.Ti.N | >10 | Medium to Roughing | M ★★ | P ★★ | K ★★ | |
| CX3555 | 89.8 | Al.Ti.Si.N | >3 | Medium to Roughing | M ★★ | P ★ | K ★ | |
| Turning Grade Co | mparison | Chart.. | .......... | Page B204 |
