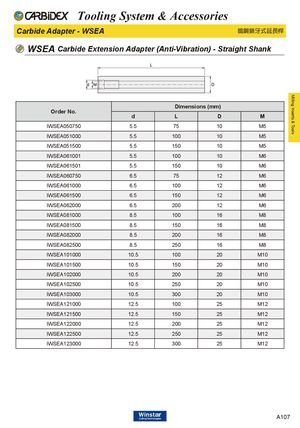

Carbide Adapter - WSEA 鎢鋼鎖牙式延長桿
WSEA Carbide Extension Adapter (Anti-Vibration) - Straight Shank
| Order No. | Dimensio | ns (mm) | ||
| d | L | D | M | |
| IWSEA050750 | 5.5 | 75 | 10 | M5 |
| IWSEA051000 | 5.5 | 100 | 10 | M5 |
| IWSEA051500 | 5.5 | 150 | 10 | M5 |
| IWSEA061001 | 5.5 | 100 | 10 | M6 |
| IWSEA061501 | 5.5 | 150 | 10 | M6 |
| IWSEA060750 | 6.5 | 75 | 12 | M6 |
| IWSEA061000 | 6.5 | 100 | 12 | M6 |
| IWSEA061500 | 6.5 | 150 | 12 | M6 |
| IWSEA062000 | 6.5 | 200 | 12 | M6 |
| IWSEA081000 | 8.5 | 100 | 16 | M8 |
| IWSEA081500 | 8.5 | 150 | 16 | M8 |
| IWSEA082000 | 8.5 | 200 | 16 | M8 |
| IWSEA082500 | 8.5 | 250 | 16 | M8 |
| IWSEA101000 | 10.5 | 100 | 20 | M10 |
| IWSEA101500 | 10.5 | 150 | 20 | M10 |
| IWSEA102000 | 10.5 | 200 | 20 | M10 |
| IWSEA102500 | 10.5 | 250 | 20 | M10 |
| IWSEA103000 | 10.5 | 300 | 20 | M10 |
| IWSEA121000 | 12.5 | 100 | 25 | M12 |
| IWSEA121500 | 12.5 | 150 | 25 | M12 |
| IWSEA122000 | 12.5 | 200 | 25 | M12 |
| IWSEA122500 | 12.5 | 250 | 25 | M12 |
| IWSEA123000 | 12.5 | 300 | 25 | M12 |
