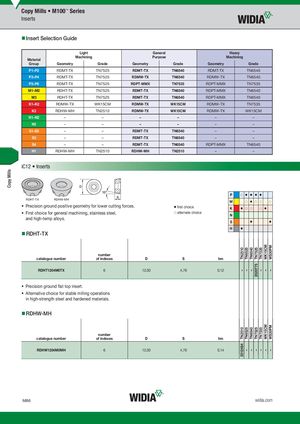

- Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mach | avy ining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | RDMT-TX | TN7525 | RDMT-TX | TN6540 | RDMT-TX | TN6540 |
| P3–P4 | RDMT-TX | TN7525 | RDMW-TX | TN6540 | RDMW-TX | TN6540 |
| P5–P6 | RDMT-TX | TN7525 | RDPT-MMX | TN7535 | RDPT-MMX | TN7535 |
| M1–M2 | RDHT-TX | TN7525 | RDMT-TX | TN6540 | RDPT-MMX | TN6540 |
| M3 | RDHT-TX | TN7525 | RDMT-TX | TN6540 | RDPT-MMX | TN6540 |
| K1–K2 | RDMW-TX | WK15CM | RDMW-TX | WK15CM | RDMW-TX | TN7535 |
| K3 | RDHW-MH | TN2510 | RDMW-TX | WK15CM | RDMW-TX | WK15CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | RDMT-TX | TN6540 | – | – |
| S3 | – | – | RDMT-TX | TN6540 | – | – |
| S4 | – | – | RDMT-TX | TN6540 | RDPT-MMX | TN6540 |
| H1 | RDHW-MH | TN2510 | RDHW-MH | TN2510 | – | – |
iC12 Inserts
RDHT-TX RDHW-MH
- Precision ground positive geometry for lower cutting forces.
- First choice for general machining, stainless steel, and high-temp alloys.
- RDHT-TX
fi rst choice alternate choice
P M K N S H
number
| catalogue number | of indexes | D | S | hm | |
| RDHT1204M0TX | 6 | 12,00 | 4,76 | 0,12 |
- Precision ground fl at top insert.
- Alternative choice for stable milling operations in high-strength steel and hardened materials.
- RDHW-MH
number
| catalogue number | of indexes | D | S | hm | |
| RDHW1204M0MH | 6 | 12,00 | 4,76 | 0,14 |
