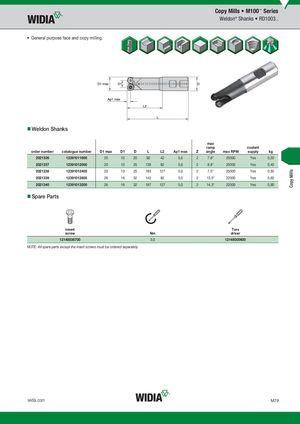

- General purpose face and copy milling.
- Weldon Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 2021336 | 12391011600 | 20 | 10 | 20 | 92 | 42 | 5,0 | 2 | 7.8° | 25000 | Yes | 0,20 |
| 2021337 | 12391012000 | 20 | 10 | 25 | 138 | 82 | 5,0 | 2 | 8.8° | 25000 | Yes | 0,40 |
| 2021338 | 12391012400 | 20 | 10 | 25 | 183 | 127 | 5,0 | 2 | 7.5° | 25000 | Yes | 0,50 |
| 2021339 | 12391012800 | 26 | 16 | 32 | 142 | 82 | 5,0 | 2 | 13.5° | 22000 | Yes | 0,60 |
| 2021340 | 12391013200 | 26 | 16 | 32 | 187 | 127 | 5,0 | 2 | 14.3° | 22000 | Yes | 0,90 |
- Spare Parts
insert Torx
screw Nm driver
12148036700 3,0 12148000600
NOTE: All spare parts except the insert screws must be ordered separately.
