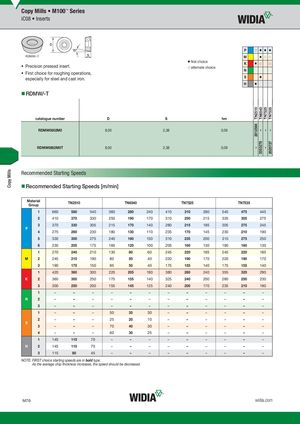

Общий каталог Widia 2017 - страница 980
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
RDMW/-T
- Precision pressed insert.
- First choice for roughing operations, especially for steel and cast iron.
- RDMW/-T
fi rst choice alternate choice
P M K N S H
| catalogue number | D | S | hm |
| RDMW0802M0 | 8,00 | 2,38 | 0,09 |
RDMW0802M0T 8,00 2,38 0,09
Recommended Starting Speeds
- Recommended Starting Speeds [m/min]
Material
TN2510 TN6540 TN7525 TN7535
| Material Group | TN2510 | TN6540 | TN7525 | TN7535 | ||||||||
| 1 | 660 | 580 | 540 | 360 | 280 | 240 | 410 | 310 | 280 | 545 | 475 | 445 |
| 2 | 410 | 370 | 330 | 250 | 190 | 170 | 310 | 250 | 215 | 335 | 305 | 275 |
| P 3 | 370 | 330 | 305 | 215 | 170 | 140 | 280 | 215 | 185 | 305 | 275 | 245 |
| 4 | 275 | 260 | 230 | 180 | 130 | 110 | 235 | 170 | 145 | 230 | 210 | 190 |
| 5 | 330 | 300 | 275 | 240 | 180 | 150 | 310 | 235 | 200 | 310 | 275 | 250 |
| 6 | 230 | 205 | 175 | 160 | 120 | 100 | 205 | 160 | 130 | 190 | 160 | 130 |
| 1 | 270 | 240 | 210 | 130 | 80 | 60 | 245 | 220 | 185 | 245 | 220 | 185 |
| M 2 | 245 | 210 | 190 | 80 | 50 | 40 | 220 | 190 | 170 | 220 | 190 | 170 |
| 3 | 190 | 175 | 150 | 85 | 50 | 40 | 175 | 155 | 140 | 175 | 155 | 140 |
| 1 | 420 | 360 | 300 | 220 | 205 | 180 | 380 | 280 | 240 | 355 | 320 | 290 |
| K 2 | 360 | 300 | 250 | 175 | 155 | 140 | 325 | 240 | 200 | 280 | 250 | 230 |
| 3 | 300 | 250 | 200 | 155 | 145 | 125 | 240 | 200 | 170 | 235 | 210 | 190 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | 50 | 35 | 30 | – | – | – | – | – | – |
| S 2 | – | – | – | 25 | 20 | 10 | – | – | – | – | – | – |
| 3 | – | – | – | 70 | 40 | 30 | – | – | – | – | – | – |
| 4 | – | – | – | 60 | 30 | 25 | – | – | – | – | – | – |
| 1 | 145 | 110 | 70 | – | – | – | – | – | – | – | – | – |
| H 2 | 145 | 110 | 70 | – | – | – | – | – | – | – | – | – |
| 3 | 115 | 80 | 45 | – | – | – | – | – | – | – | – | – |
