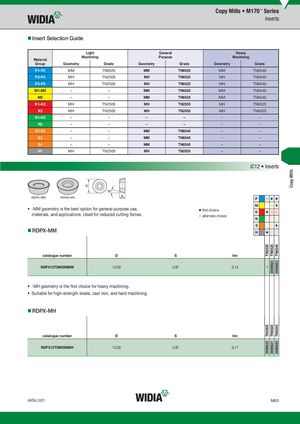

- Insert Selection Guide
| Mil | M | Light achining General Purpose | Heav Machin | y ing |
| atera Group | Geometry | Grade Geometry Grade | Geometry | Grade |
| P1–P2 | MM | TN6525 MM TN6525 | MM | TN6540 |
| P3–P4 | MH | TN2505 MH TN6525 | MH | TN6540 |
| P5–P6 | MH | TN2505 MH TN6525 | MH | TN6540 |
| M1–M2 | – | – MM TN6525 | MM | TN6540 |
| M3 | – | – MM TN6525 | MM | TN6540 |
| K1–K2 | MH | TN2505 MH TN2505 | MH | TN6525 |
| K3 | MH | TN2505 MH TN2505 | MH | TN6525 |
| N1–N2 | – | – – – | – | – |
| N3 | – | – – – | – | – |
| S1–S2 | – | – MM TN6540 | – | – |
| S3 | – | – MM TN6540 | – | – |
| S4 | – | – MM TN6540 | – | – |
| H1 | MH | TN2505 MH TN2505 | – | – |
| RDPX-MM | RDHX-MH | iC12 • Inserts P � � � | ||
| �RDPX-MM catalog • -MM geomet materials, an | ue number ry is the best o d applications. | D S ption for general-purpose use, Used for reduced cutting forces. | hm �fi rst choice �alternate choice | TN2505 TN6525 TN6540 M � � K � � � N S � H � |
| RDPX12T | 3M0SNMM | 12,00 3,97 | 0,13 | – 3959624 3959623 |
| • -MH geomet i • Suitable for h | ry is the fi rst ch igh-strength st | i oice for heavy machining. eels, cast iron, and hard machining. | ||
| �RDPX-MH catalog | ue number | D S | hm | TN2505 TN6525 TN6540 |
| RDPX12T | 3M0SNMH | 12,00 3,97 | 0,17 | 3959622 3959621 3959620 |
