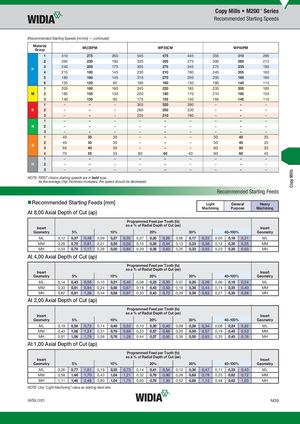

- Material Overview • DIN
| Material Group | WU35PM | WP35CM | WP40PM | ||||||
| 1 | 310 | 275 | 260 | 545 | 475 | 445 | 355 | 310 | 295 |
| 2 | 265 | 230 | 190 | 335 | 305 | 275 | 300 | 260 | 215 |
| P 3 | 240 | 205 | 170 | 305 | 275 | 245 | 275 | 235 | 190 |
| 4 | 215 | 180 | 145 | 230 | 210 | 190 | 245 | 205 | 160 |
| 5 | 180 | 160 | 145 | 310 | 275 | 250 | 205 | 185 | 160 |
| 6 | 155 | 120 | 95 | 190 | 160 | 130 | 180 | 140 | 110 |
| 1 | 205 | 180 | 160 | 245 | 220 | 185 | 235 | 205 | 185 |
| M 2 | 185 | 155 | 130 | 220 | 190 | 170 | 210 | 180 | 150 |
| 3 | 140 | 120 | 95 | 175 | 155 | 140 | 155 | 140 | 110 |
| 1 | – | – | – | 355 | 320 | 290 | – | – | – |
| K 2 | – | – | – | 280 | 250 | 230 | – | – | – |
| 3 | – | – | – | 235 | 210 | 190 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
| 1 | 40 | 35 | 30 | – | – | – | 50 | 40 | 35 |
| S 2 | 40 | 35 | 30 | – | – | – | 50 | 40 | 35 |
| 3 | 55 | 40 | 30 | – | – | – | 60 | 50 | 35 |
| 4 | 70 | 55 | 35 | 80 | 60 | 40 | 80 | 60 | 40 |
| 1 | – | – | – | – | – | – | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds [mm]
Recommended Starting Feeds
Light General Heavy
| ecomm 8,00 Axia | ne l Dept | ar hofC | ng e ut (ap | es [ ) | m] | Lig Machi | ht ning | Gen Purp | eral ose | Heavy Machining | ||||||
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Tooth th of Cu | (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| ML | 0,12 | 0,37 | 0,48 | 0,09 | 0,27 | 0,35 | 0,07 | 0,20 | 0,26 | 0,06 | 0,17 | 0,23 | 0,05 | 0,16 | 0,21 | ML |
| MM | 0,28 | 0,70 | 0,81 | 0,21 | 0,50 | 0,58 | 0,15 | 0,38 | 0,44 | 0,13 | 0,33 | 0,38 | 0,12 | 0,30 | 0,35 | MM |
| MH | 0,53 | 0,70 | 1,17 | 0,38 | 0,50 | 0,84 | 0,29 | 0,38 | 0,63 | 0,25 | 0,33 | 0,55 | 0,23 | 0,30 | 0,50 | MH |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Toot th of Cu | h (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| ML | 0,14 | 0,43 | 0,56 | 0,10 | 0,31 | 0,40 | 0,08 | 0,23 | 0,30 | 0,07 | 0,20 | 0,26 | 0,06 | 0,18 | 0,24 | ML |
| MM | 0,33 | 0,81 | 0,94 | 0,24 | 0,58 | 0,67 | 0,18 | 0,43 | 0,50 | 0,16 | 0,38 | 0,44 | 0,14 | 0,35 | 0,40 | MM |
| MH | 0,62 | 0,81 | 1,36 | 0,44 | 0,58 | 0,97 | 0,33 | 0,43 | 0,72 | 0,29 | 0,38 | 0,63 | 0,27 | 0,35 | 0,58 | MH |
as a % of Radial Depth of Cut (ae) Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Toot th of Cu | h (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| ML | 0,19 | 0,56 | 0,73 | 0,14 | 0,40 | 0,53 | 0,10 | 0,30 | 0,40 | 0,09 | 0,26 | 0,34 | 0,08 | 0,24 | 0,32 | ML |
| MM | 0,43 | 1,06 | 1,24 | 0,31 | 0,76 | 0,89 | 0,23 | 0,57 | 0,66 | 0,20 | 0,50 | 0,57 | 0,19 | 0,45 | 0,53 | MM |
| MH | 0,81 | 1,06 | 1,79 | 0,58 | 0,76 | 1,28 | 0,44 | 0,57 | 0,95 | 0,38 | 0,50 | 0,83 | 0,35 | 0,45 | 0,76 | MH |
Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
ML 0,26 0,77 1,01 0,19 0,55 0,73 0,14 0,41 0,54 0,12 0,36 0,47 0,11 0,33 0,43 ML
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Toot th of Cu | h (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| ML | 0,26 | 0,77 | 1,01 | 0,19 | 0,55 | 0,73 | 0,14 | 0,41 | 0,54 | 0,12 | 0,36 | 0,47 | 0,11 | 0,33 | 0,43 | ML |
| MM | 0,59 | 1,46 | 1,70 | 0,43 | 1,04 | 1,21 | 0,32 | 0,78 | 0,90 | 0,28 | 0,68 | 0,79 | 0,25 | 0,62 | 0,72 | MM |
| MH | 1,11 | 1,46 | 2,48 | 0,80 | 1,04 | 1,75 | 0,60 | 0,78 | 1,30 | 0,52 | 0,68 | 1,13 | 0,48 | 0,62 | 1,03 | MH |
