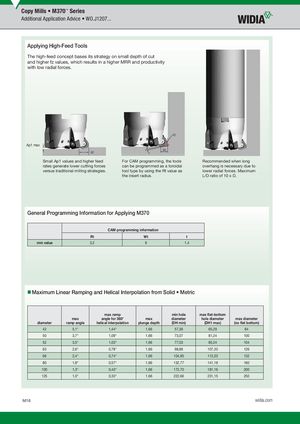

Additional Application Advice • WO.J1207...
Applying High-Feed Tools
The high-feed concept bases its strategy on small depth of cut
and higher fz values, which results in a higher MRR and productivity
with low radial forces.
Rt
Ap1 max Wt Wt t
| Small Ap1 values and higher feed | For CAM programming, the tools | Recommended when long |
| rates generate lower cutting forces | can be programmed as a toroidal | overhang is necessary due to |
| versus traditional milling strategies. | tool type by using the Rt value as | lower radial forces. Maximum |
the insert radius. L/D ratio of 10 x D.
General Programming Information for Applying M370
CAM programming information
| Rt | Wt | t | |
| mm value | 3,2 | 9 | 1,4 |
Maximum Linear Ramping and Helical Interpolation from Solid • Metric
| max ramp | min hole | max fl at-bottom | |||
| max | angle for 360° | max | diameter | hole diameter | max diameter |
diameter ramp angle helical interpolation plunge depth (DH min) (DH1 max) (no fl at bottom)
| 42 | 5,1° | 1,44° | 1,66 | 57,36 | 65,29 | 84 |
| 50 | 3,7° | 1,09° | 1,66 | 73,07 | 81,24 | 100 |
| 52 | 3,5° | 1,03° | 1,66 | 77,03 | 85,24 | 104 |
| 63 | 2,6° | 0,78° | 1,66 | 98,88 | 107,20 | 126 |
| 66 | 2,4° | 0,74° | 1,66 | 104,85 | 113,20 | 132 |
| 80 | 1,8° | 0,57° | 1,66 | 132,77 | 141,18 | 160 |
| 100 | 1,3° | 0,43° | 1,66 | 172,70 | 181,16 | 200 |
| 125 | 1,0° | 0,33° | 1,66 | 222,66 | 231,15 | 250 |
